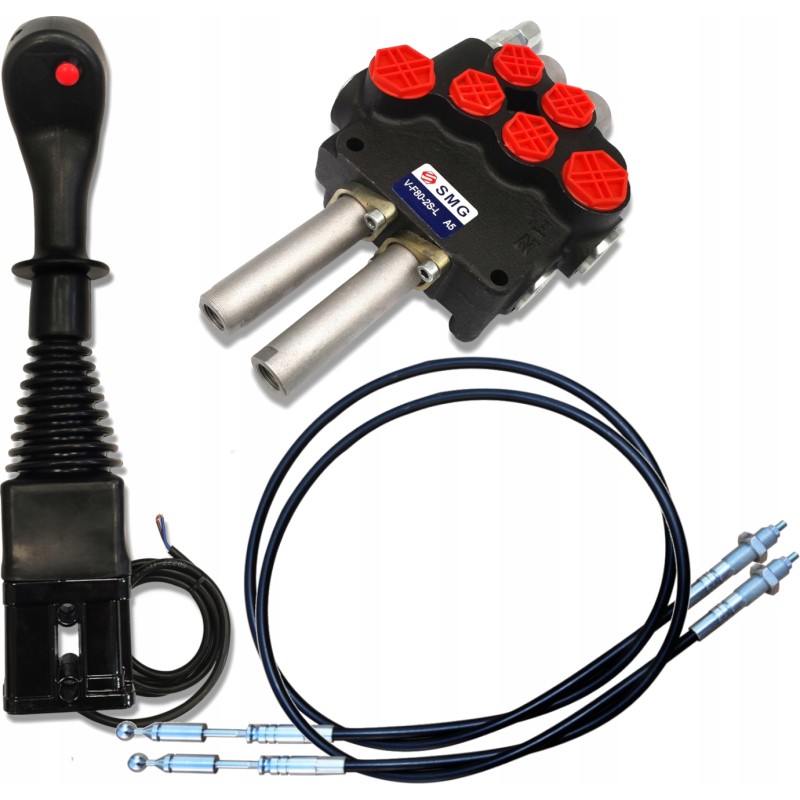

Distributor 80l joystick set for john deere aurochs

2-section hydraulic set 80L/min for TURAKOD SKRAW MET: [8009] Manufacturer: SM-G (SKRAW MET GROUP) Set: ball joystick with 1 button [0171]

2x 2m long cable [0203]

hydraulic distributor for 2-section cables 80L/min [1603]

The set is perfect for hydraulically powered machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lifting and bucket tilt).

The set has many advantages that influence dynamic, fast and safe control of the machine.

It can be used in agriculture, horticulture, forestry and construction. It is adapted to work in: agricultural machines, tractors, sprayers, axes, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

2-SECTION 80L HYDRAULIC DISTRIBUTOR WITH LINKS Manufacturer: SM-G (SKRAW MET GROUP )The high-quality, monoblock distributor is characterized by a compact structure, stable operation and high versatility.

Enables the control of two double-acting or (after plugging one of the ports) single-acting actuators.

It is possible to connect in series to an existing system (pressure sleeve required).

Control from the cabin using cables and joystick.

Application: The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry and construction.

The universal distributor is used in various types of machines such as: Cyklops Tury

Loaders

Plows

Forklifts and much more

The three-position slider (1 - 0 - 2) springs back to the vertical position on its own Position 0 neutral (joystick set vertically - the cable is loose), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in an oblique forward position) the actuator piston rod extends.

Working position 2 (joystick set obliquely to the rear) the actuator piston rod retracts.

Connection: Supply (P) BSP 3/4''

Return (T) BSP 3/4''

Output to sections BSP 1/2''

BSP connection 3/4'

Technical specifications: Oil flow: 0 - 80 l/min

Maximum working pressure: 250 bar

Permissible ambient temperature: -40 ℃ to +60 ℃

Permissible oil temperature: -15 ℃ to +80 ℃

Equipped with a safety valve.

JOYSTICK WITH 1 BUTTON Designed for mechanical control of lifting the frame , shovel inclination and bale grabber or crocodile.

A solid joystick enabling mechanical control of the three-way hydraulic control valves of TURA (loader) using two cables and one button.

Allows for remote control (from the cab) of distributors that are located outside the cab.

Application :Dedicated to control TURA 1, 2, 3 in tractors such as:

URSUS

ZETOR

MF and derivatives.

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry and construction.

Adapted is suitable for use in various types of machines, i.e. agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, industrial machines and others. Easy to install. Technical specifications: Operating temperature: from -30 °C / up to +80°C

Cable opening Φ14 mm

Locking lever

M8 self-locking pin for cable attachment

Material: ergonomic, hardened plastic handle

Aluminum alloy base

The joystick has a safety mechanism (2) enabling the locking of movements joystick head, to prevent accidental activation: Locked joystick head Unlocked joystick head Cable to control the 2m ball distributor POLISH product SUPER DURABLE The cable is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick / lever.

Can be used in agriculture and horticulture , forestry, construction and broadly understood industry.

Ends: The end of the cable on the joystick side ended with a ball with a diameter of 14 mm

The end of the cable on the distributor side, cable body thread M16x1.5, slider thread M6x1.6
