Distributor 80l 2 sec latch joystick 2p turn

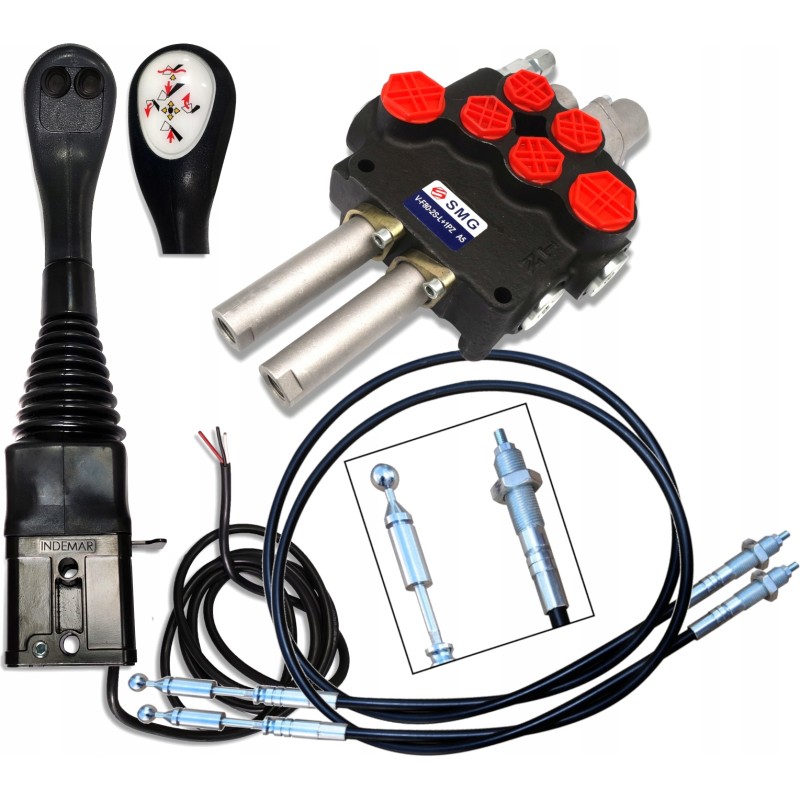

2-section hydraulic set 80L/min with a floating section and a latch for TURAKOD SKRAW MET: [8491] Manufacturer: SM-G (SKRAW MET GROUP) Set includes: ball joystick with 2 buttons [0172]

2x 2m long rope [ 0203]

2-section hydraulic distributor for cables, 80L/min - floating section + latch [1724]

The set is perfect for hydraulically powered machines and devices. It guarantees effective control of two sections in TUR front loaders (frame lifting and bucket tilt).

The set has many advantages that influence dynamic, fast and safe control of the machine.

It can be used in agriculture, horticulture, forestry and construction. It is adapted to work in: agricultural machines, tractors, sprayers, rounds, cyclops, HDS loaders, construction machines, loaders, excavators, sweepers, industrial machines and others.

2-SECTION HYDRAULIC DISTRIBUTOR, 80L, FOR CABLES + FLOATING SECTION WITH 1-WAY LATCH (K16+8) Manufacturer: SM-G (SKRAW MET GROUP) High-quality, monoblock distributor with a parallel system with a floating (absorbing) chamber. It is characterized by a compact design, stable operation and high versatility.

Allows you to control from the cab (using cables and joystick) two double-acting or (after plugging one of the ports) single-acting actuators.

It is possible to connect in series to an existing system (pressure sleeve required) .

Thanks to the latch with a latch, the distributor is ideal for machines and devices where there is no need to keep your hand on the joystick all the time.

The (high-quality) monoblock distributor with a parallel system and a floating (absorbing) chamber.

!ATTENTION! In a given distributor, the section with a latch is located in only one section with a FLOATING FUNCTION

Application: The distributor is perfect for hydraulically powered machines and devices.

It can be used in agriculture, horticulture, forestry or construction.

Universal distributor, can be used in various types of machines such as: Cyclops

Tourists

Loaders

Plows

Forklifts and many others

Three-position slider (1 - 0 - 2) with a latch with a latch, i.e. it holds the position in the working position

Position 0 neutral (joystick set vertically - the cable is loose), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in an oblique forward position) the actuator piston rod extends.

Working position 2 (joystick set obliquely to the rear) the actuator piston rod retracts.

The three-position slider (1 - 0 - 2) springs back to the vertical position on its own Position 0 neutral (joystick set vertically - the cable is loose), the actuator piston rod is standing - the oil goes to the overflow.

Working position 1 (joystick set in an oblique forward position) the actuator piston rod extends.

Working position 2 (joystick set obliquely to the rear) the actuator piston rod retracts.

Connection: Supply (P) BSP 3/4''

Return (T) BSP 3/4''

Output to sections BSP 1/2''

BSP connection 3/4'

Technical specifications: Oil flow: 0 - 80 l/min

Maximum working pressure: 300 bar

Permissible ambient temperature: -40 ℃ to +60 ℃

Permissible oil temperature: -15 ℃ to +80 ℃

Equipped with a safety valve.

JOYSTICK WITH 2 BUTTONS Designed for mechanical control of lifting the frame , shovel inclination and bale grabber or crocodile + additional fourth section.

A solid joystick enabling mechanical control of the four-way hydraulic control valves of TURA (loader) using two cables and two buttons.

Allows remote control (from the cab) of distributors that are located outside cabin.

Application:Dedicated to control TURA 1, 2, 3 in tractors such as:

URSUS

ZETOR

MF and derivatives.

Perfect for hydraulically powered machines and devices.

Can be used in agriculture, horticulture, forestry and construction.

It is adapted to work in various types of machines, i.e.: agricultural machines, tractors, sprayers, aurochs, cyclops, HDS loaders, construction machines, loaders, excavators, industrial machines and others.

Easy to install. Technical specifications: Operating temperature : from -30°C / up to +80°C

Cable opening Φ14 mm

Lock lever

M8 self-locking pin for cable attachment

Material: ergonomic, hardened plastic handle

Aluminum alloy base

The joystick has a safety mechanism (2 ) enabling the locking of joystick head movements to prevent accidental activation: Locked joystick head Unlocked joystick head Cable to control the ball distributor 2 m POLISH product SUPER DURABLE The cable is perfect for controlling hydraulic distributors used in hydraulically powered machines and devices controlled by a joystick / lever.

Can be used in agriculture, horticulture, forestry, construction and broadly understood industry.

Ends: The end of the cable on the joystick side ended with a ball with a diameter of 14 mm

The end of the cable on the distributor side, cable body thread M16x1.5, slider thread M6x1.6
