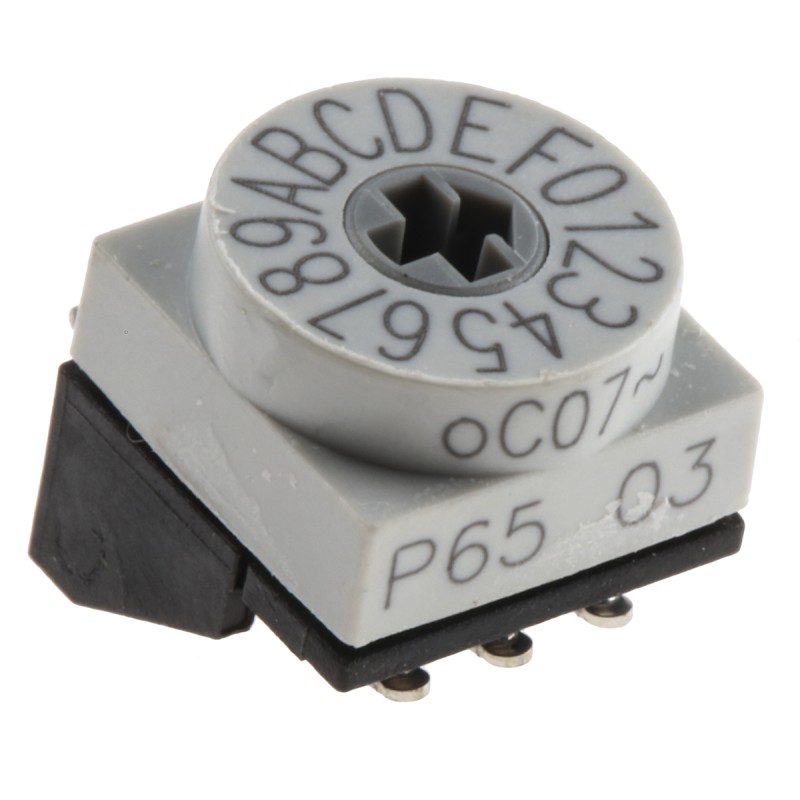

10 pcs - P65THR703L254 Hartmann 16 Way Through Hole DIP Switch, Slot Actuator

Angular Rotary Code Switches, P65THR…L254 SeriesThe P65THR rotary code switches have clearly visible figures and a detention mechanism for fast, precise and easy operation. The L254 indicates these unit are angular with a 2.54mm pitch and are through whole mount. Two actuator types are available, either an arrow shaped slot or a cross shaped slot. Each actuator type has the option for either BCD coding or hexadecimal coding. The BCD coding gives 10 selectable positions and the hexadecimal coding gives 16 selectable positions.FeaturesSolid PCB pinsContacts with abrasion resistant hard gold plating100% electronic final inspection and testing at factoryPositions per rotation: Options for 10 or 16Two types of actuator slots availableOperating temperature range: -60°C to +125°CVoltage Rating: 42 V maxPCB MountingFootprint/pin spacing: 2.54mm between pins and 5.08mm between rows
