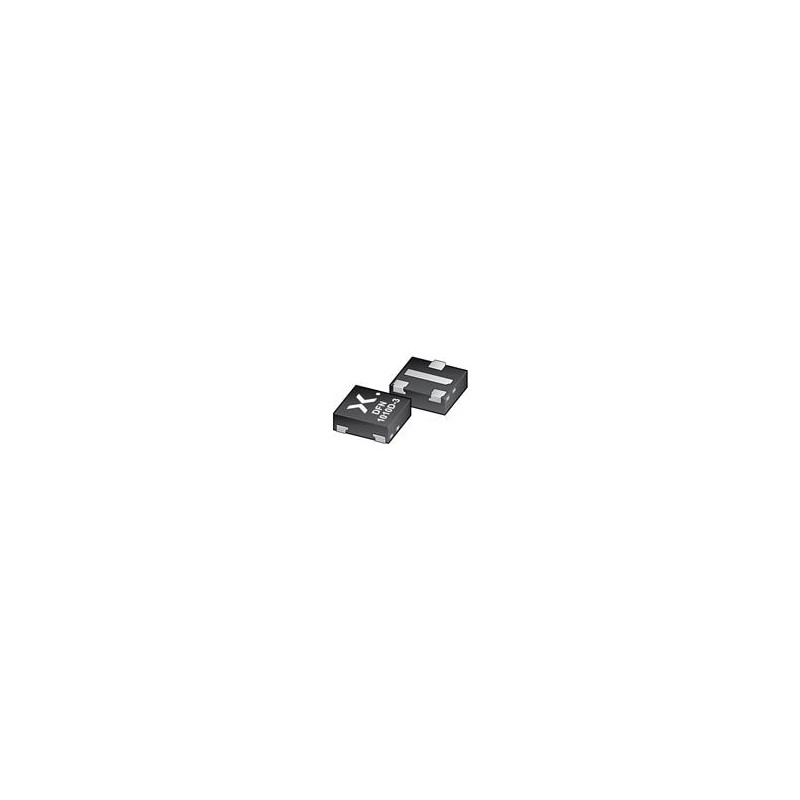

10 pcs : BAW56QAZ - Diodes - General Purpose, Power, Switching BAW56QA/SOT1215/DFN1010D-3
    • 10 pcs : BAW56QAZ - Diodes - General Purpose, Power, Switching BAW56QA/SOT1215/DFN1010D-3

    10 pcs : BAW56QAZ - Diodes - General Purpose, Power, Switching BAW56QA/SOT1215/DFN1010D-3

    10electronicpartsUK771BAW56QAZ
    NEXPERIA
    10 pcs : BAW56QAZ - Diodes - General Purpose, Power, Switching BAW56QA/SOT1215/DFN1010D-3
    £21.68
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SOT1215 Surface-Mounted Package Products Nexperia SOT1215 Surface-Mounted Package Products offer a plastic, leadless, thermally enhanced ultra thin small outline package with side-wettable flanks (SWF). The SOT1215 products feature three terminals, a 0.75mm pitch and a 1.1mm x 1mm x 0.37mm body. The SOT1215 Surface-Mounted Package Products use a HUSON (thermal enhanced ultra thin small outline, no leads) package style descriptive code. Additionally, the devices support a 1.5mm x 1.3mm footprint and a 1.95mm2 footprint area.
    Product Details
    NEXPERIA
    10electronicpartsUK771BAW56QAZ
    BAW56QAZ
    10 Items

    Data sheet

    Manufacturer
    NEXPERIA
    Width
    2.7 mm
    Height
    1.7 mm
    Length
    4.9 mm
    Series
    CZRA4734
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 55 C
    Mounting Style
    SMD/SMT
    Product Type
    Zener Diodes
    Package/Case
    DO-214AC-2
    Product Category
    Zener Diodes
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Comchip Technology
    Factory Pack Quantity Factory Pack Quantity
    2000
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    73 mg
    Pd - Power Dissipation
    1 W
    Vf - Forward Voltage
    1.2 V
