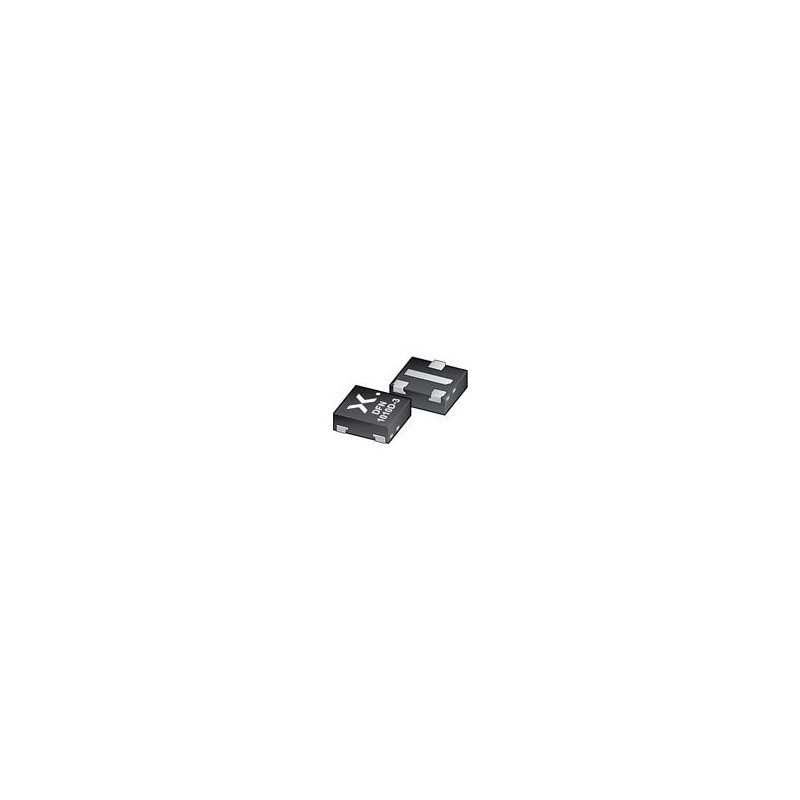

10 pcs : BAV170QAZ - Diodes - General Purpose, Power, Switching BAV170QA/SOT1215/DFN1010D-3
    • 10 pcs : BAV170QAZ - Diodes - General Purpose, Power, Switching BAV170QA/SOT1215/DFN1010D-3

    10 pcs : BAV170QAZ - Diodes - General Purpose, Power, Switching BAV170QA/SOT1215/DFN1010D-3

    10electronicpartsUK771BAV170QAZ
    NEXPERIA
    10 pcs : BAV170QAZ - Diodes - General Purpose, Power, Switching BAV170QA/SOT1215/DFN1010D-3
    £21.68
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    SOT1215 Surface-Mounted Package Products Nexperia SOT1215 Surface-Mounted Package Products offer a plastic, leadless, thermally enhanced ultra thin small outline package with side-wettable flanks (SWF). The SOT1215 products feature three terminals, a 0.75mm pitch and a 1.1mm x 1mm x 0.37mm body. The SOT1215 Surface-Mounted Package Products use a HUSON (thermal enhanced ultra thin small outline, no leads) package style descriptive code. Additionally, the devices support a 1.5mm x 1.3mm footprint and a 1.95mm2 footprint area.
    Product Details
    NEXPERIA
    10electronicpartsUK771BAV170QAZ
    BAV170QAZ
    10 Items

    Data sheet

    Manufacturer
    NEXPERIA
    Width
    2.8 mm
    Height
    2.3 mm
    Length
    4.5 mm
    Series
    SML47
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 65 C
    Mounting Style
    SMD/SMT
    Product Type
    Zener Diodes
    Termination Style
    SMD/SMT
    Package/Case
    DO-214AC-2
    Product Category
    Zener Diodes
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Vishay Semiconductors
    Factory Pack Quantity Factory Pack Quantity
    1800
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    73 mg
    REACH - SVHC
    Details
    Pd - Power Dissipation
    1 W
    Ir - Reverse Current
    5 uA
