1 pcs : CMAD6001 TR PBFREE - Diodes - General Purpose, Power, Switching 100V 250mA ULTRA LOW LEAKAGE
    • 1 pcs : CMAD6001 TR PBFREE - Diodes - General Purpose, Power, Switching 100V 250mA ULTRA LOW LEAKAGE

    1 pcs : CMAD6001 TR PBFREE - Diodes - General Purpose, Power, Switching 100V 250mA ULTRA LOW LEAKAGE

    electronicparts-UK/M/610-CMAD6001
    £9.57
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description

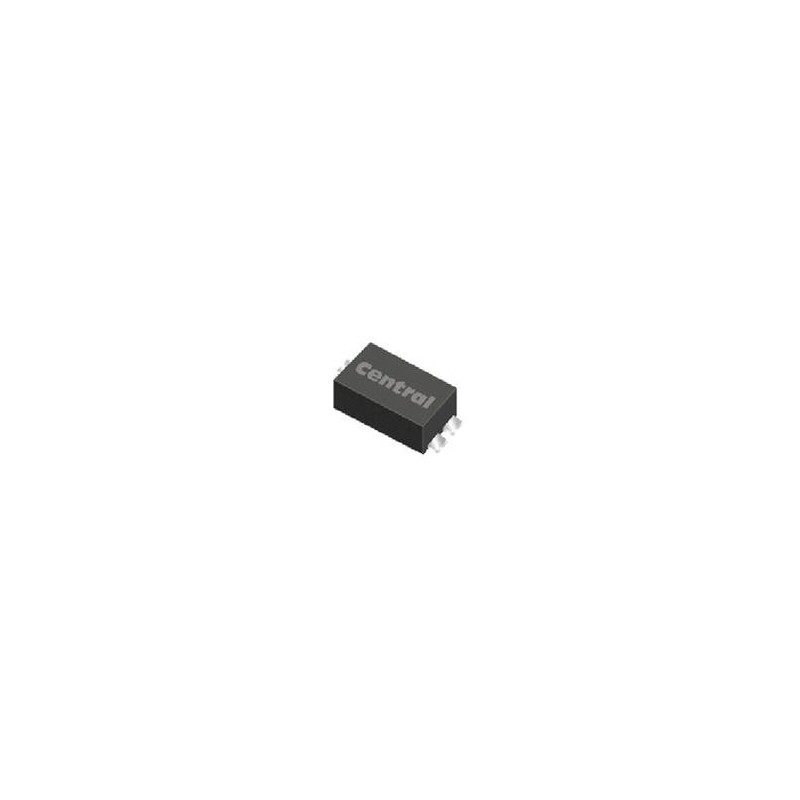

    CMAD6001 Switching Diode Central Semiconductor's CMAD6001 is an ultra-low leakage switching diode in a SOD-923 package. Ideal for applications in which very small size and operational efficiency are required, the high-quality 100V, 250mA diode has an extremely low leakage current (IR) of 0.5nA max. and low capacitance of 2.0pF max. The device utilizes 55% less board space and is 0.41mm high, making it ideal for industrial and telecom designs.
    Product Details
    electronicparts-UK/M/610-CMAD6001
    CMAD6001 TR PBFREE
    10 Items

    Data sheet

    Manufacturer
    Central Semiconductor
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 65 C
    Mounting Style
    SMD/SMT
    Product Type
    Diodes - General Purpose, Power, Switching
    Product Category
    Diodes - General Purpose, Power, Switching
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Central Semiconductor
    Factory Pack Quantity Factory Pack Quantity
    8000
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    18 mg
    If - Forward Current
    250 mA
    Vf - Forward Voltage
    1.1 V
    Max Surge Current
    3 A
    Ir - Reverse Current
    500 pA
    Recovery Time
    3 us
