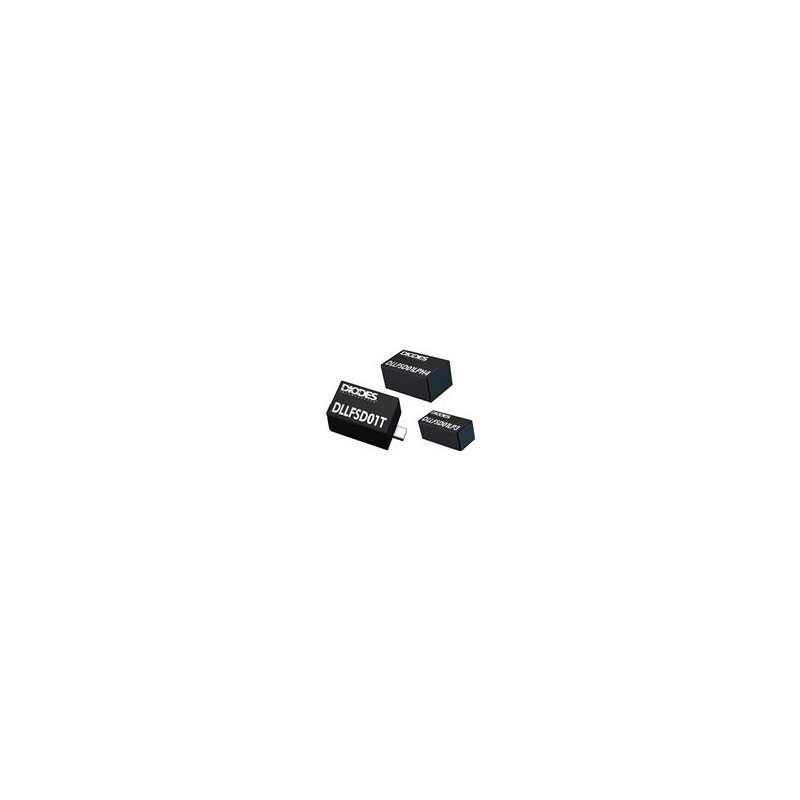

    1 pcs : DLLFSD01LPH4-7B - Diodes - General Purpose, Power, Switching 85Vrm Ultra Low Leak 80Vrrm Fast Reverse
    • 1 pcs : DLLFSD01LPH4-7B - Diodes - General Purpose, Power, Switching 85Vrm Ultra Low Leak 80Vrrm Fast Reverse

    1 pcs : DLLFSD01LPH4-7B - Diodes - General Purpose, Power, Switching 85Vrm Ultra Low Leak 80Vrrm Fast Reverse

    electronicparts-UK/M/621-DLLFSD01LPH4-7B
    £10.52
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    DLLFSD01 Surface Mount Fast Switching Diode Diodes Inc. DLLFSD01 Fast Switching Diodes provide an ultra-low leakage current (IR~5nA), super-fast reverse recovery time (trr≤4ns), and extremely low total capacitance (CT~0.5pF) in an ultra-small leadless surface mount package (0.6 x 0.3mm). The design improves system power consumption and reduces the switching loss of the application circuit.
    Product Details
    DIODES INCORPORATED
    electronicparts-UK/M/621-DLLFSD01LPH4-7B
    DLLFSD01LPH4-7B
    10 Items

    Data sheet

    Manufacturer
    DIODES INCORPORATED
    Width
    0.6 mm
    Height
    0.37 mm
    Length
    1 mm
    Series
    DLLFSD01
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 65 C
    Mounting Style
    SMD/SMT
    Product Type
    Diodes - General Purpose, Power, Switching
    Termination Style
    SMD/SMT
    Package/Case
    X2-DFN1006-2
    Product Category
    Diodes - General Purpose, Power, Switching
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Diodes Incorporated
    Factory Pack Quantity Factory Pack Quantity
    10000
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    10 g
    Pd - Power Dissipation
    350 mW
    If - Forward Current
    300 mA
    Vf - Forward Voltage
    940 mV
    Max Surge Current
    2 A
    Ir - Reverse Current
    5 nA
    Recovery Time
    4 ns
