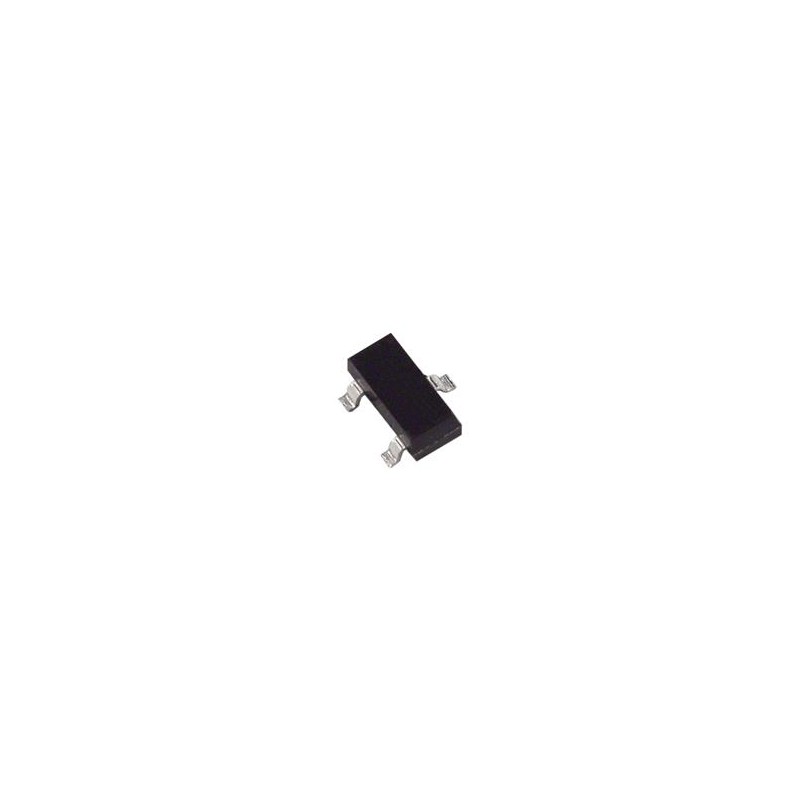

    1 pcs : BAW56HYT116 - Diodes - General Purpose, Power, Switching High speed switching, 80V, 215mA, SOT-23, Anode Common, Switchi
    • 1 pcs : BAW56HYT116 - Diodes - General Purpose, Power, Switching High speed switching, 80V, 215mA, SOT-23, Anode Common, Switchi

    1 pcs : BAW56HYT116 - Diodes - General Purpose, Power, Switching High speed switching, 80V, 215mA, SOT-23, Anode Common, Switchi

    electronicparts-UK/M/755-BAW56HYT116
    £7.18
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Automotive Switching Diodes ROHM Automotive Switching Diodes are AEC-Q101-qualified high-reliability diodes. These diodes offer a reverse voltage range between 35V to 200V and 0.1A to 0.215A average rectified current forward range. The Automotive Switching Diodes feature a 1V to 1.25V low forward voltage range and provide high-speed switching. These diodes are available in UMD6, EMD3F, VMD3, UMD3F, SMD3, SOT-23, and VMN2 packages.
    Product Details
    ROHM SEMICONDUCTOR
    electronicparts-UK/M/755-BAW56HYT116
    BAW56HYT116
    10 Items

    Data sheet

    Manufacturer
    ROHM SEMICONDUCTOR
    Maximum Operating Temperature
    + 150 C
    Minimum Operating Temperature
    - 65 C
    Mounting Style
    SMD/SMT
    Product Type
    Diodes - General Purpose, Power, Switching
    Configuration
    Common Anode
    Package/Case
    SOT-23-3
    Product Category
    Diodes - General Purpose, Power, Switching
    Packaging
    Cut Tape
    RoHS
    Details
    Brand
    ROHM Semiconductor
    Product
    Switching Diodes
    Factory Pack Quantity Factory Pack Quantity
    3000
    Subcategory
    Diodes & Rectifiers
    Part # Aliases
    BAW56HY
    Pd - Power Dissipation
    250 mW
    Vr - Reverse Voltage
    80 V
    If - Forward Current
    215 mA
    Vf - Forward Voltage
    1.25 V
    Max Surge Current
    4 A
    Ir - Reverse Current
    100 nA
    Recovery Time
    4 ns
