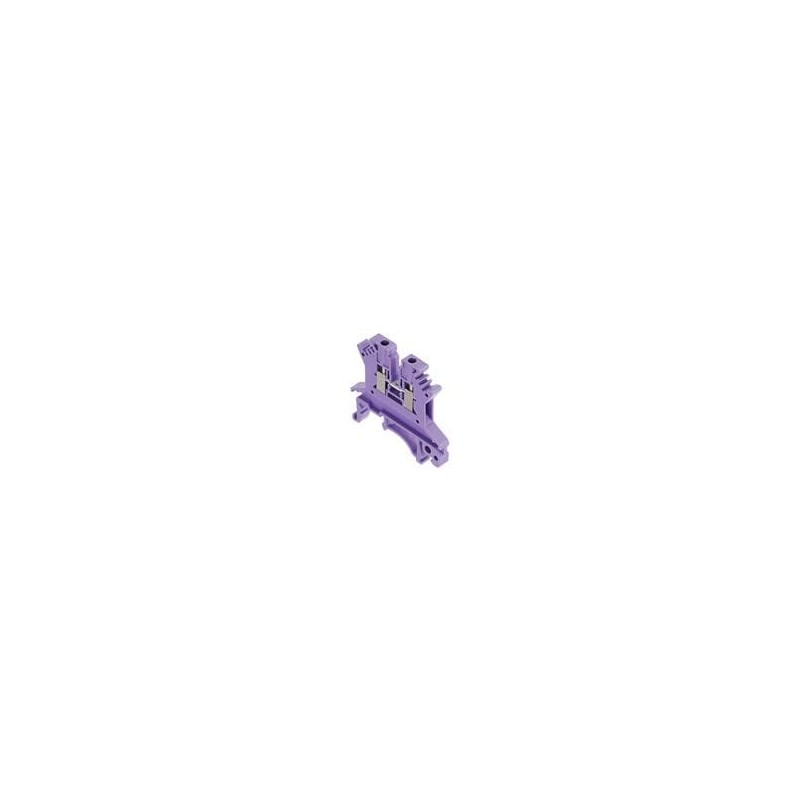

10 pcs : 3005841 - DIN Rail Terminal Blocks UK 1 5 N VT
    • 10 pcs : 3005841 - DIN Rail Terminal Blocks UK 1 5 N VT

    10 pcs : 3005841 - DIN Rail Terminal Blocks UK 1 5 N VT

    10(electronicparts)6513005841
    10 pcs : 3005841 - DIN Rail Terminal Blocks UK 1 5 N VT
    £62.25
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Control Cabinet Solutions Phoenix Contact Control Cabinet Solutions offer flexibility, innovation, and cost-effective products for every application. Ranging from power supplies and DIN-rail terminal blocks to relays, circuit breakers, lighting, and more, Phoenix Contact offers a single-source solution for all control cabinet needs. Control cabinet solutions are designed to the required standards and directives, enabling the finished products to meet the highest requirements.
    Product Details
    10(electronicparts)6513005841
    3005841
    10 Items

    Data sheet

    Manufacturer
    PHOENIX CONTACT
    Width
    4.2 mm
    Height
    42 mm
    Length
    42.5 mm
    Current rating
    17.5 A
    Number of positions
    2 Position
    Series
    UK
    Voltage Rating
    500 V
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 60 C
    Mounting Style
    DIN Rail (NS 32, NS 35/7.5, NS 35/15)
    Type
    Feed Through Terminal Block
    Housing Material
    Polyamide (PA)
    Product Type
    DIN Rail Terminal Blocks
    Product Category
    DIN Rail Terminal Blocks
    Flammability Rating
    UL 94 V-0
    Connection Method
    Screw
    Color
    Violet
    RoHS
    Details
    Brand
    Phoenix Contact
    Factory Pack Quantity Factory Pack Quantity
    50
    Subcategory
    Terminal Blocks
    Tradename
    CLIPLINE
    Unit Weight
    4.300 g
    Part # Aliases
    UK__1,5_N_VT UK15NVT
    Wire Gauge Min
    26 AWG
    Wire Gauge Max
    16 AWG
    Wire Gauge Range
    26 AWG to 16 AWG
