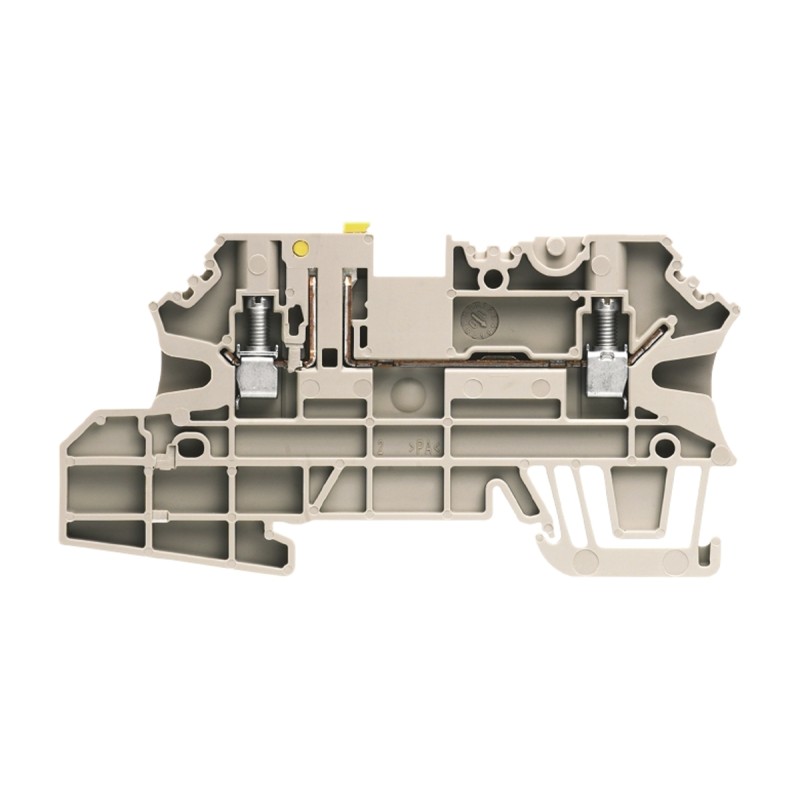

10 pcs - 1143020000 Weidmuller W Series Brown Disconnect Terminal Block, 2.5mm², Single-Level, Screw Termination

WMF Test Disconnect Terminal BlocksMulti-functional test-disconnect terminal blocks provide a multi-functional solution for routing and distributing signals. The terminals are compact and space-saving and can be used with feed-through, fuse and disconnect functionality.Features and Benefits• Combined functionality in a single solution• Integrated shield connection• Wide variety of labelling options• Screw connection• DIN Rail mountingThe ’W’ series screw clamp terminals are suitable for ’Top Hat’ DIN Rail and manufactured from nylon 6.6 which has a continuous temperature rating of 120°C (180°C short term). They are self-extinguishing to UL94V-0 and free from cadmium and halogen. Current bars are constructed from 10 mm electrolytic copper to ensure a current loading more than nominal rating. Terminals are suitable for mounting on symmetric ’Top Hat’ rail only (BS5584:1978, EN 50022) and are touch proof in accordance with BS 3042.
