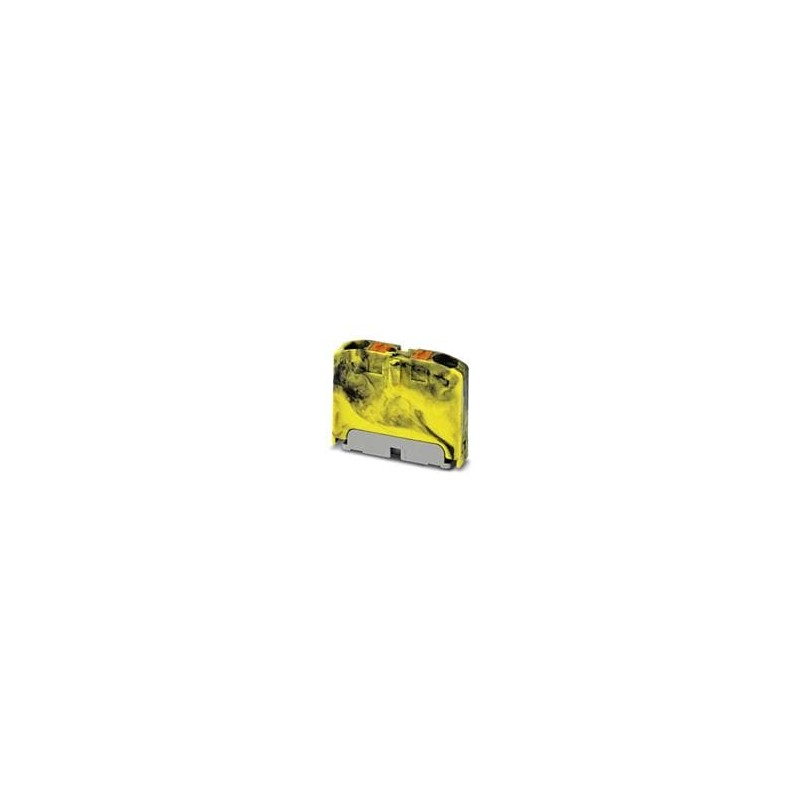

    1 pcs : 1028078 - DIN Rail Terminal Blocks PTFIX 2X2,5-FE
    • 1 pcs : 1028078 - DIN Rail Terminal Blocks PTFIX 2X2,5-FE

    1 pcs : 1028078 - DIN Rail Terminal Blocks PTFIX 2X2,5-FE

    Allparts-UK/M/651-1028078
    £8.50
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    PTFIX Distribution Blocks Phoenix Contact PTFIX Distribution Blocks are ready for instant connection with push-in technology, multiple positions, and mounting options. These PTFIX blocks ensure a flexible, cost-effective load, and control current distribution. The push-in connection technology enables the quick and easy insertion of wires. Phoenix Contact PTFIX Distribution Blocks are available in self-assembly, tool-free self-adhesive, and DIN rail with transverse mounting. The PTFIX series offers 1.5mm2/2.5mm2 strands and 8mm to 10mm stripping length.
    Product Details
    PHOENIX CONTACT
    Allparts-UK/M/651-1028078
    1028078
    10 Items

    Data sheet

    Manufacturer
    PHOENIX CONTACT
    Width
    5.2 mm
    Height
    21.7 mm
    Length
    28.6 mm
    Current rating
    24 A
    Number of positions
    2 Position
    Series
    PTFIX
    Voltage Rating
    450 V
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 60 C
    Mounting Style
    Direct Mounting with Flange
    Type
    Distribution Block
    Housing Material
    Polyamide (PA)
    Product Type
    DIN Rail Terminal Blocks
    Number of Rows
    1 Row
    Product Category
    DIN Rail Terminal Blocks
    Flammability Rating
    UL 94 V-0
    Connection Method
    Push-In
    Color
    Black, Yellow
    RoHS
    Details
    Brand
    Phoenix Contact
    Factory Pack Quantity Factory Pack Quantity
    50
    Subcategory
    Terminal Blocks
    Unit Weight
    3.330 g
