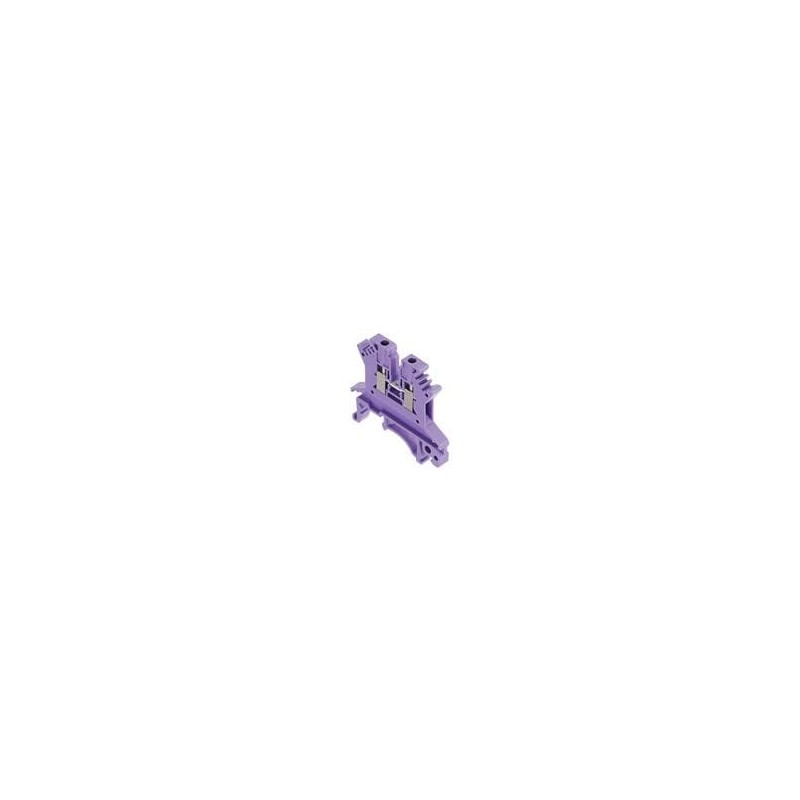

1 pcs : 3005841 - DIN Rail Terminal Blocks UK 1 5 N VT
    • 1 pcs : 3005841 - DIN Rail Terminal Blocks UK 1 5 N VT

    1 pcs : 3005841 - DIN Rail Terminal Blocks UK 1 5 N VT

    electronicparts-UK/M/651-3005841
    £11.64
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Control Cabinet Solutions Phoenix Contact Control Cabinet Solutions offer flexibility, innovation, and cost-effective products for every application. Ranging from power supplies and DIN-rail terminal blocks to relays, circuit breakers, lighting, and more, Phoenix Contact offers a single-source solution for all control cabinet needs. Control cabinet solutions are designed to the required standards and directives, enabling the finished products to meet the highest requirements.
    Product Details
    electronicparts-UK/M/651-3005841
    3005841
    10 Items

    Data sheet

    Manufacturer
    PHOENIX CONTACT
    Width
    4.2 mm
    Height
    42 mm
    Length
    42.5 mm
    Current rating
    17.5 A
    Number of positions
    2 Position
    Series
    UK
    Voltage Rating
    500 V
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 60 C
    Mounting Style
    DIN Rail (NS 32, NS 35/7.5, NS 35/15)
    Type
    Feed Through Terminal Block
    Housing Material
    Polyamide (PA)
    Product Type
    DIN Rail Terminal Blocks
    Product Category
    DIN Rail Terminal Blocks
    Flammability Rating
    UL 94 V-0
    Connection Method
    Screw
    Color
    Violet
    RoHS
    Details
    Brand
    Phoenix Contact
    Factory Pack Quantity Factory Pack Quantity
    50
    Subcategory
    Terminal Blocks
    Tradename
    CLIPLINE
    Unit Weight
    4.300 g
    Part # Aliases
    UK__1,5_N_VT UK15NVT
    Wire Gauge Min
    26 AWG
    Wire Gauge Max
    16 AWG
    Wire Gauge Range
    26 AWG to 16 AWG
