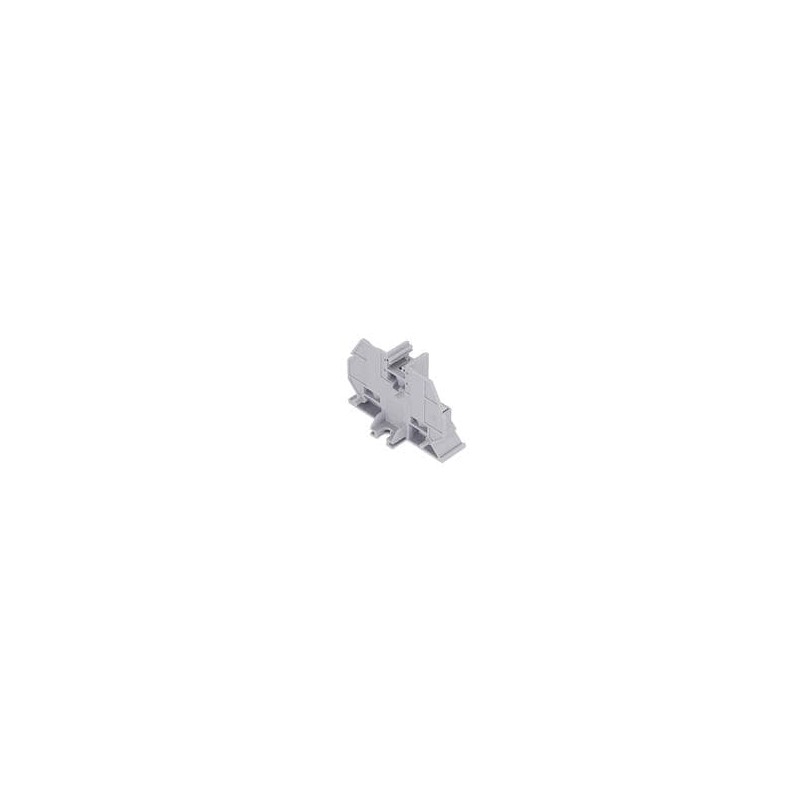

    1 pcs : 3058062 - DIN Rail Terminal Blocks RBO 5-F
    • 1 pcs : 3058062 - DIN Rail Terminal Blocks RBO 5-F

    1 pcs : 3058062 - DIN Rail Terminal Blocks RBO 5-F

    Allparts-UK/M/651-3058062
    £10.58
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    RSC & RBO Ring Lug Terminal Blocks Phoenix Contact Open-Style Ring Screw (RSC) and Ring Bolt (RBO) Terminal Blocks have a compact, modular design with 9mm and 13mm profiles, and can replace traditional barrier blocks. Because the RSC/RBO ring terminals are smaller than most traditional barrier blocks, the density within the control cabinet is increased. Available in both DIN rail terminal block and panel-mount terminal block packages, the RSC and RBO terminal blocks can be assembled to support unique configurations. Phoenix Contact RSC and RBO terminal blocks are ideally suited for industrial control and switchgear applications.
    Product Details
    PHOENIX CONTACT
    Allparts-UK/M/651-3058062
    3058062
    10 Items

    Data sheet

    Manufacturer
    PHOENIX CONTACT
    Width
    13 mm
    Height
    37 mm
    Length
    53.3 mm
    Current rating
    57 A
    Number of positions
    2 Position
    Series
    RBO
    Voltage Rating
    800 V
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 60 C
    Mounting Style
    DIN Rail
    Type
    Feed Through Terminal Block
    Housing Material
    Polyamide (PA)
    Product Type
    DIN Rail Terminal Blocks
    Pitch
    13 mm
    Product Category
    DIN Rail Terminal Blocks
    Flammability Rating
    UL 94 V-0
    Connection Method
    Bolt
    Color
    Gray
    RoHS
    Details
    Brand
    Phoenix Contact
    Factory Pack Quantity Factory Pack Quantity
    50
    Subcategory
    Terminal Blocks
    Tradename
    CLIPLINE
    Unit Weight
    18.630 g
    Part # Aliases
    RBO_5-F RBO5F
    Wire Gauge Min
    26 AWG
    Wire Gauge Max
    10 AWG
    Wire Gauge Range
    26 AWG to 10 AWG
