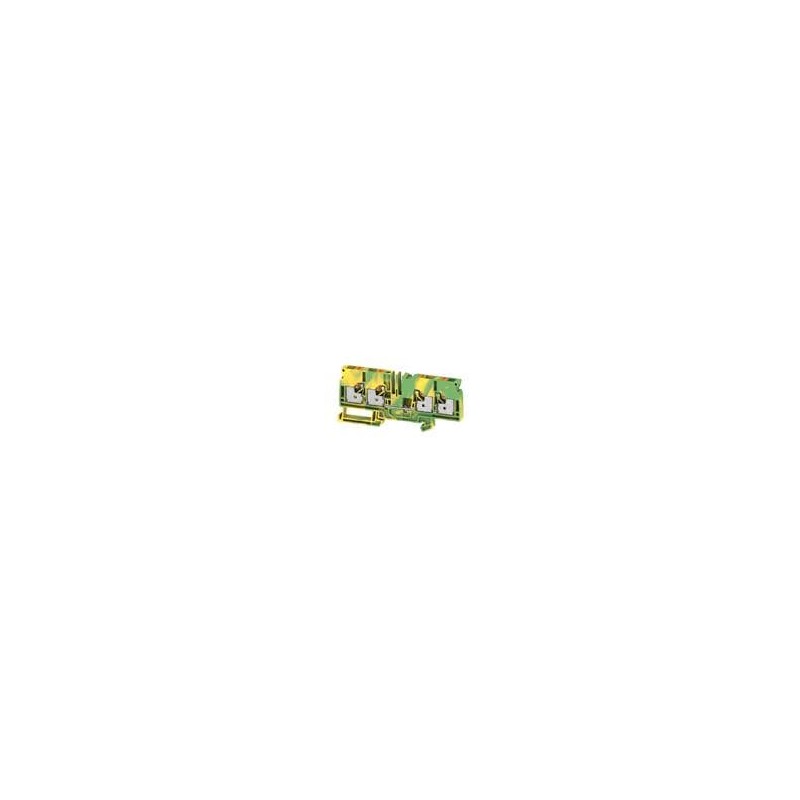

1 pcs : 2881490000 - DIN Rail Terminal Blocks A4C 6 PE
    • 1 pcs : 2881490000 - DIN Rail Terminal Blocks A4C 6 PE

    1 pcs : 2881490000 - DIN Rail Terminal Blocks A4C 6 PE

    electronicparts-UK/M/470-2881490000
    Weidmuller
    £27.62
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    Klippon® Connect SNAP IN Terminal Blocks Weidmuller Klippon® Connect SNAP IN Terminal Blocks feature easy-to-use construction and require low mating forces due to the simple insertion of the stripped conductor. The stripped fine-stranded conductors only need to be inserted into the connection point, and the connection point snaps shut with an audible click to ensure correct connection. When releasing the connection, press the green pusher for easy disconnect. These terminal blocks provide a vibration-resistant, gas-tight connection with copper power rails and a stainless steel spring. Weidmuller Klippon Connect SNAP IN Terminal Blocks are compatible with accessories of the Klippon Connect A series and are ideal for the connection of flexible and fine-stranded conductors with and without ferrules.
    Product Details
    Weidmuller
    electronicparts-UK/M/470-2881490000
    2881490000
    10 Items

    Data sheet

    Manufacturer
    WEIDMÜLLER
    Width
    8.1 mm
    Height
    45.5 mm
    Length
    102 mm
    Current rating
    41 A
    Series
    SNAP IN
    Voltage Rating
    800 V
    Maximum Operating Temperature
    + 130 C
    Minimum Operating Temperature
    - 60 C
    Type
    Feed-Through
    Housing Material
    Thermoplastic (TP)
    Product Type
    DIN Rail Terminal Blocks
    Product Category
    DIN Rail Terminal Blocks
    Flammability Rating
    UL 94 V-0
    Connection Method
    Push-In
    Color
    Green/Yellow
    RoHS
    Details
    Brand
    Weidmuller
    Factory Pack Quantity Factory Pack Quantity
    1
    Subcategory
    Terminal Blocks
    Tradename
    Klippon
    Wire Gauge Min
    22 AWG
    Wire Gauge Max
    8 AWG
    Wire Gauge Range
    22 AWG to 8 AWG
