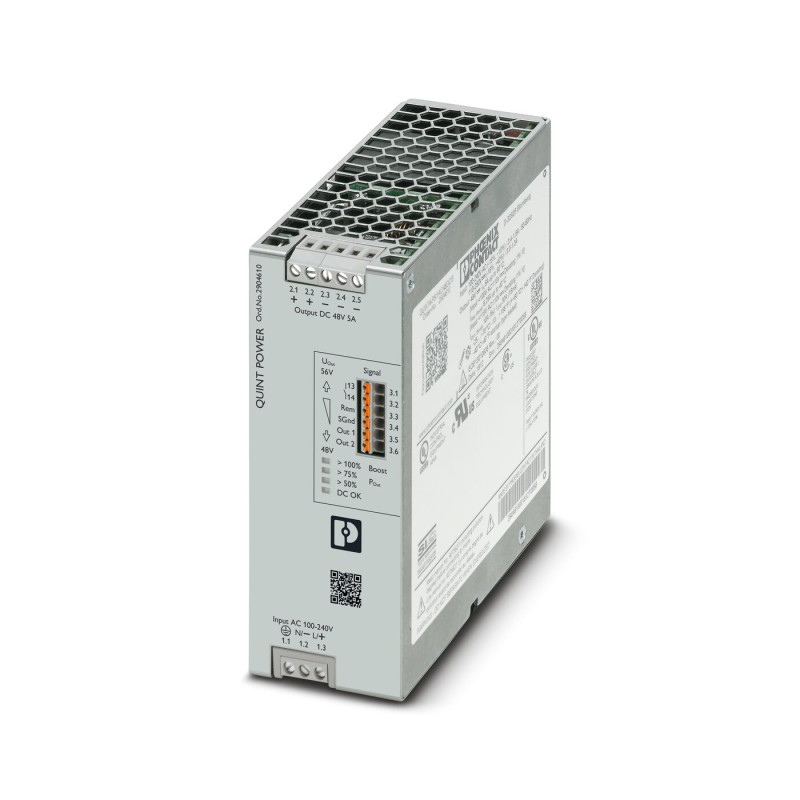

1 pcs - Phoenix Contact QUINT4-PS/1AC/48DC/5 Switch Mode DIN Rail Power Supply, 230V ac ac, dc Input, 48 - 56V dc dc

Data sheet

Manufacturer

PHOENIX CONTACT

Width

50mm

Height

130mm

Output voltage

48 - 56V dc

Number of outputs

1

Depth

125mm

Input voltage

230V ac

Efficiency

93.5%

A-Supplier

Allparts-UK-R

Series

QUINT4-PS/1AC/48DC/5

Mounting Type

DIN Rail Mount

Standards Met

ABS, BV, DIN VDE 0100-410, DNV GL, EN 50178/VDE 0160 (PELV), EN 60204-1 (PELV), EN 61000-3-2, EN 61558-2-16, IEC 60950-1, IEC 60950-1/VDE 0805 (SELV), LR, PRS, UL 60950-1, UL ANSI/ISA-12.12.01 Class I, UL Listed UL 508

Type

Switch Mode

Power Rating

240W

Special Features

Dynamic Boost with up to 200% for 5 Second, High-Performance QUINT POWER Power Supplies, Monitoring Indicates Critical Operating States Before Errors Occur, NFC Interface

Output Current

5A

Electrical Phase

1

Hazardous Area Certification

Class I Division 2 Group A, Class I Division 2 Group B, Class I Division 2 Group C, Class I Division 2 Group D

AC or DC Input Voltage

ac, dc

AC or DC Output Voltage

dc

MTBF

>,784000h

Ripple And Noise

80mV Pk-Pk
