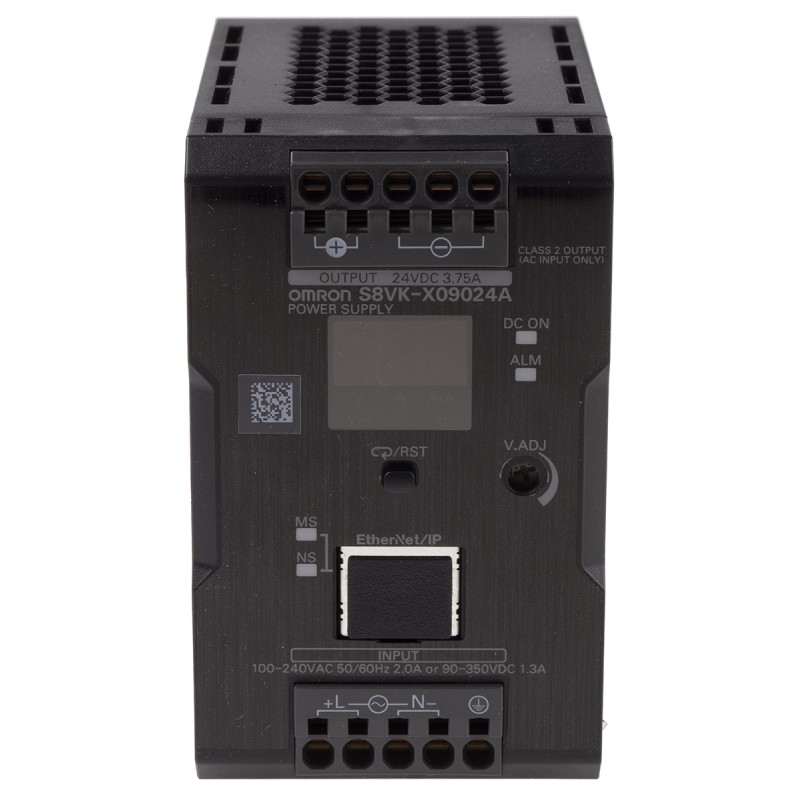

1 pcs - Omron S8VK-X Switch Mode DIN Rail Power Supply, 230V ac ac, dc Input, 24V dc dc Output, 3.75A Output, 90W

Data sheet

Manufacturer

OMRON

Width

55mm

Height

90mm

Output voltage

24V DC

Number of outputs

1

Depth

92mm

Input voltage

230V ac

Efficiency

87%

A-Supplier

Allparts-UK-R

Series

S8VK-X

Mounting Type

DIN Rail Mount

Standards Met

CE, cULus, EAC, EN 61000-3-2, EN 61204-3, EN/IEC 60529, EN/IEC 61558-2-16, TUV, UL

Type

Switch Mode

Power Rating

90W

Special Features

and more are Acquired on the Network and can be Managed all at Once, Output Current, Output Voltage, Power Boost Function at 150%, Replacement Time, Status Can be Checked On-Site Using the Indication Monitor

Output Current

3.75A

Electrical Phase

1

AC or DC Input Voltage

ac, dc

AC or DC Output Voltage

dc

Load Regulation

1.5%

MTBF

110000h

Ripple And Noise

300mV Pk-Pk

Output Voltage Adjustment Range

23 - 24.1V
