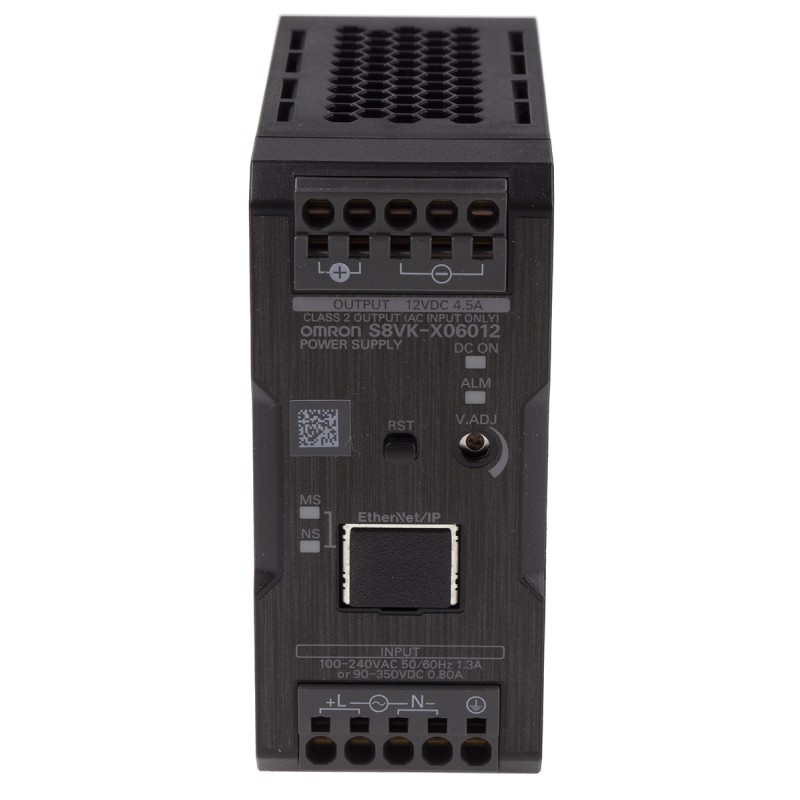

1 pcs - Omron S8VK-X Switch Mode DIN Rail Power Supply, 230V ac ac, dc Input, 12V dc dc Output, 4.5A Output, 60W

Data sheet

Manufacturer

OMRON

Width

40mm

Height

90mm

Output voltage

12V DC

Number of outputs

1

Depth

92mm

Input voltage

230V ac

Efficiency

86%

A-Supplier

Allparts-UK-R

Series

S8VK-X

Mounting Type

DIN Rail Mount

Standards Met

CE, cULus, EAC, EN 61000-3-2, EN 61204-3, EN/IEC 60529, EN/IEC 61558-2-16, TUV, UL

Type

Switch Mode

Power Rating

60W

Special Features

and more are Acquired on the Network and can be Managed all at Once, Output Current, Output Voltage, Power Boost Function at 150%, Replacement Time, Status Can be Checked On-Site Using the Indication Monitor

Output Current

4.5A

Electrical Phase

1

AC or DC Input Voltage

ac, dc

AC or DC Output Voltage

dc

Load Regulation

1.5%

MTBF

160000h

Ripple And Noise

120mV Pk-Pk

Output Voltage Adjustment Range

10.8 - 14V
