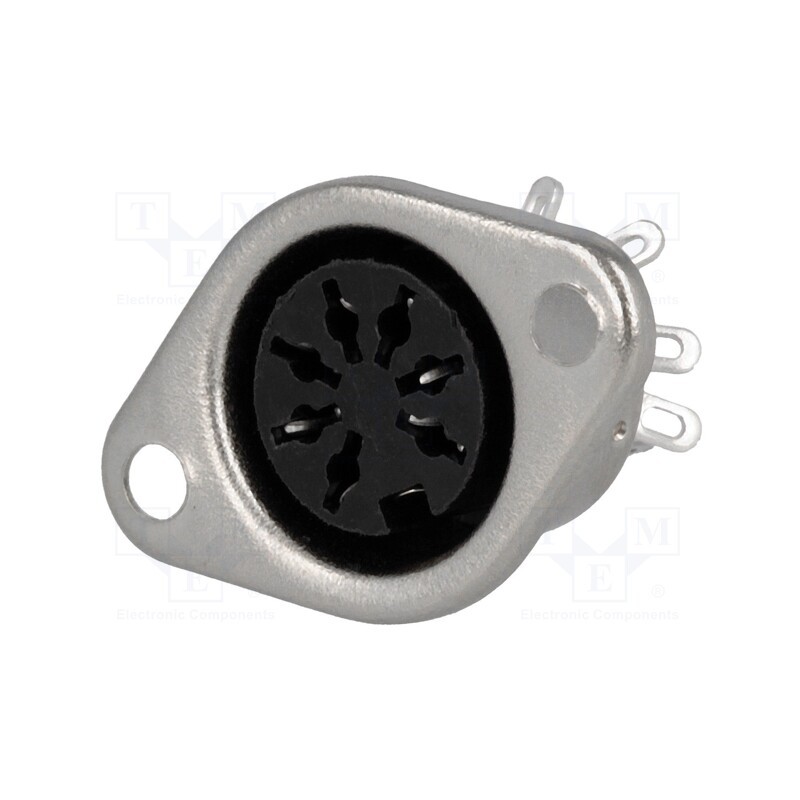

10 pcs : - Socket, DIN, female, PIN: 7, Layout: 270°, straight, soldering
    • 10 pcs : - Socket, DIN, female, PIN: 7, Layout: 270°, straight, soldering

    10 pcs : - Socket, DIN, female, PIN: 7, Layout: 270°, straight, soldering

    10(Allparts) DC109
    Socket, DIN, female, PIN: 7, Layout: 270°, straight, soldering

    Manufacturer part number: -

    Allparts-uk Symbol: DC-109

    £36.56
    Delivery: 7-10 business days
    Quantity
    5 Items

    Description
    Socket, DIN, female, PIN: 7, Layout: 270°, straight, soldering

    Manufacturer part number: -

    Allparts-uk Symbol: DC-109

    Product Details
    10(Allparts) DC109
    -
    5 Items

    Data sheet

    Spatial orientationInformation about relative position of each cable, terminals or PCB entry
    straight
    DIN standard
    DIN 45329
    Connector
    socket
    Kind of connector
    female
    Number of pins
    7
    Connector pinout layout
    270°
    Mechanical mounting
    flange (2 holes), for panel mounting
    Electrical mounting
    soldering
    Type of connector
    DIN
