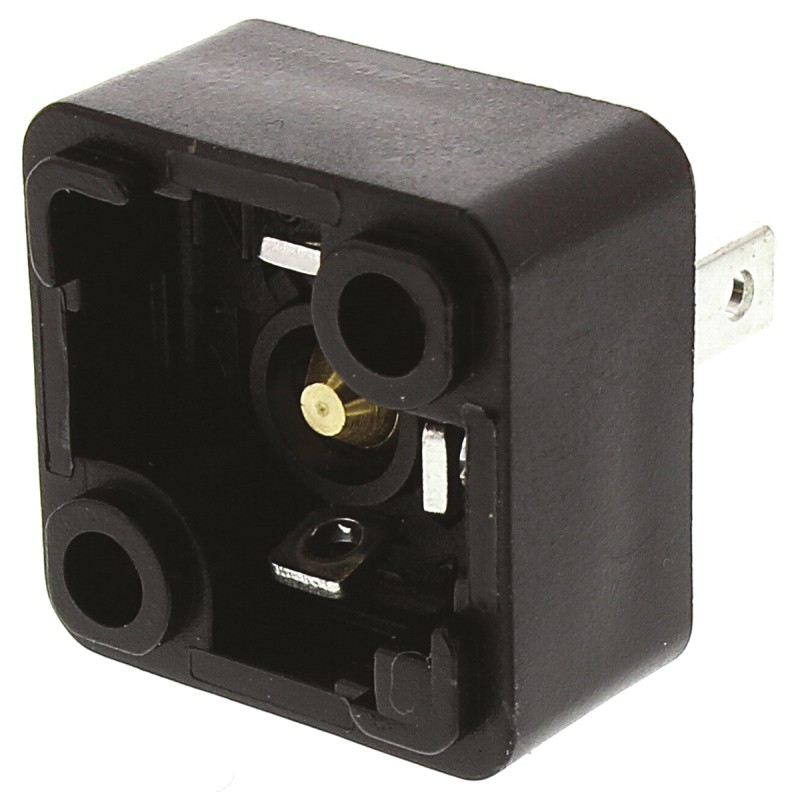

10 pcs - 933110100 GSSNA 200 Hirschmann GSSNA 2P+E DIN 43650 C, Male Solenoid Valve Connector, No, 250 V ac/dc Voltage

Belden Hirschmann Solenoid Valve Connector, 6A Current Rating, Solder Terminals - GSSNA Series - 933110100 GSSNA 200Choose this solenoid valve connector from Belden Hirschmann to keep your pneumatic circuit up and running. It makes a reliable connection between equipment and your electrical supply, so there's minimal risk of leads working loose. Thanks to its robust PA-GF housing, you can put the unit to the test in harsh operating conditions. Its solder terminals ensure the connector stays firmly attached to your cable, even in moving applications.Features & Benefits• One central screw for quick and simple mounting• Reusable, as you can mate it up to 50 times• Flame-retardant, so burns for a maximum of 30 seconds in the event of a fireApplications• Pharmaceutical manufacturing• Breweries• Agricultural machineryDoes this valve connector withstand washdowns?When correctly mounted and locked, the receptacle makes an IP65-rated connection that's dust-tight and protected against low-pressure water jets. This makes it suitable for light washdowns.DIN 43650C HirschmannA comprehensive range of connectors and plug bases typically for use with solenoid valves on pneumatic and hydraulic equipment. The inner connector can be rotated through 90° increments so the gland can be positioned in all four directions. Housing material is glass-filled nylon making them impact resistant.Hirschmann appliance connectors feature terminals that can be screwed onto bare or ferruled conductors, or will accept crimp ring/fork terminals under the head of the screw.Sockets L. 38mm (overall)H 27mm (inc. gasket)M3 retaining screwBody section 15x15mmPlug base 17x17mm, H 8.5mm
