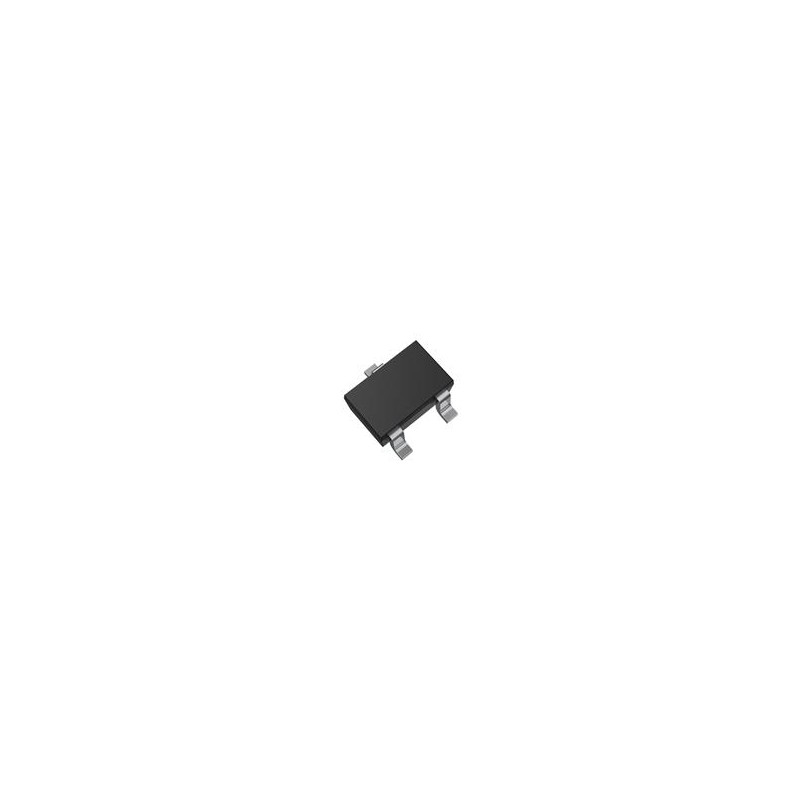

    10 pcs : RN2306,LXHF - Digital Transistors AUTO AEC-Q Single PNP , R14.7kOhm, R247kOhm, VCEO-50V, IC-0.1A (SOT-323)
    • 10 pcs : RN2306,LXHF - Digital Transistors AUTO AEC-Q Single PNP , R14.7kOhm, R247kOhm, VCEO-50V, IC-0.1A (SOT-323)

    10 pcs : RN2306,LXHF - Digital Transistors AUTO AEC-Q Single PNP , R14.7kOhm, R247kOhm, VCEO-50V, IC-0.1A (SOT-323)

    10electronicpartsUK757RN2306LXHF
    TOSHIBA
    10 pcs : RN2306,LXHF - Digital Transistors AUTO AEC-Q Single PNP , R1=4.7kOhm, R2=47kOhm, VCEO=-50V, IC=-0.1A (SOT-323)
    £23.64
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    AEC-Q101 Bipolar Transistors Toshiba AEC-Q101 Bipolar Transistors are AEC-Q101 automotive-qualified transistors that have integrated bias resistors. The resistors reduce the number of external parts required. This makes it possible to reduce system size and assembly time. Transistors are available with a wide range of resistance to accommodate various circuit designs.
    Product Details
    TOSHIBA
    10electronicpartsUK757RN2306LXHF
    RN2306,LXHF
    10 Items

    Data sheet

    Manufacturer
    TOSHIBA
    Width
    1.78 mm
    Height
    0.98 mm
    Length
    2.8 mm
    Series
    DFLS120L
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 55 C
    Mounting Style
    SMD/SMT
    Product Type
    Schottky Diodes & Rectifiers
    Termination Style
    SMD/SMT
    Package/Case
    PowerDI-123-2
    Product Category
    Schottky Diodes & Rectifiers
    Packaging
    MouseReel
    RoHS
    Details
    Brand
    Diodes Incorporated
    Factory Pack Quantity Factory Pack Quantity
    3000
    Subcategory
    Diodes & Rectifiers
    Unit Weight
    18 mg
    REACH - SVHC
    Details
    Pd - Power Dissipation
    1.67 W
    If - Forward Current
    1 A
    Vf - Forward Voltage
    360 mV
    Ir - Reverse Current
    1 mA
