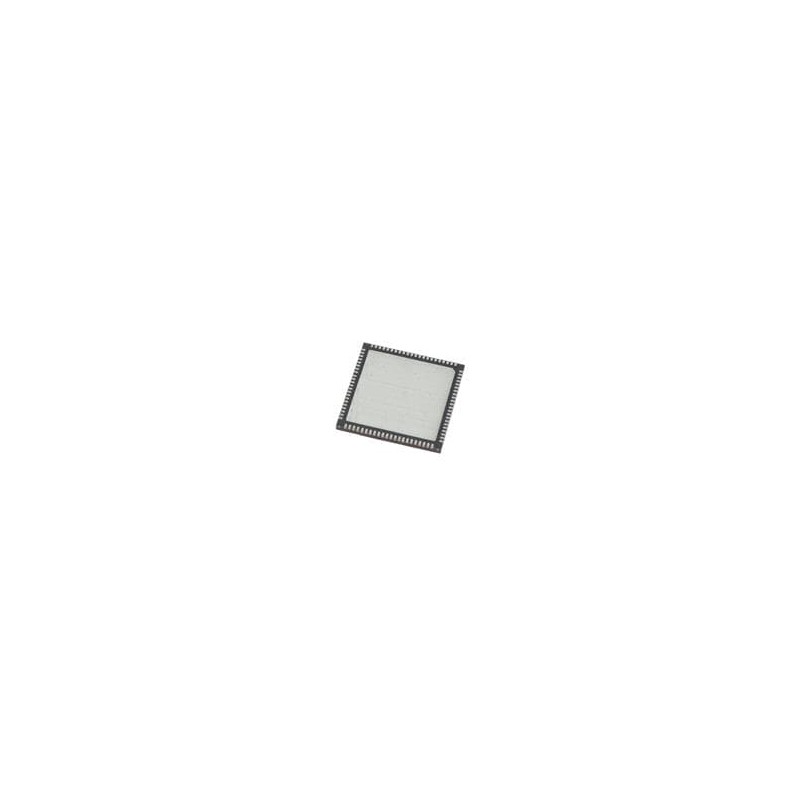

    1 pcs : ADSP-BF504BCPZ-4 - Digital Signal Processors & Controllers - DSP, DSC Low Cost Blackfin with Optimized Peripheral Set fo
    • 1 pcs : ADSP-BF504BCPZ-4 - Digital Signal Processors & Controllers - DSP, DSC Low Cost Blackfin with Optimized Peripheral Set fo

    1 pcs : ADSP-BF504BCPZ-4 - Digital Signal Processors & Controllers - DSP, DSC Low Cost Blackfin with Optimized Peripheral Set fo

    Allparts-UK/M/584-ADSP-BF504BCPZ-4
    £42.96
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Blackfin® 16-/32-bit Processors Analog Devices Inc. Blackfin® 16-/32-bit Embedded Processors offer software flexibility and scalability for convergent applications. These include multi-format audio, video, voice and image processing, multimode baseband and packet processing, control processing, and real-time security. ADI Blackfin Processors include a high performance 16-/32-bit embedded processor core with a 10-stage RISC MCU/DSP pipeline, variable length ISA for optimal code density, and full SIMD support with instructions for accelerated video and multimedia processing.
    Product Details
    Analog Devices
    Allparts-UK/M/584-ADSP-BF504BCPZ-4
    ADSP-BF504BCPZ-4
    10 Items

    Data sheet

    Manufacturer
    Analog Devices Inc.
    Width
    12 mm
    Height
    0.78 mm
    Length
    12 mm
    Series
    ADSP-BF504
    Maximum Operating Temperature
    + 85 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Number of Cores
    1 Core
    Product Type
    DSP - Digital Signal Processors & Controllers
    Package/Case
    LFCSP-88
    Core
    Blackfin
    Product Category
    Digital Signal Processors & Controllers - DSP, DSC
    Program Memory Size
    68 kB
    Packaging
    Tray
    RoHS
    Details
    Data RAM Size
    32 kB
    Maximum Clock Frequency
    400 MHz
    Number of I/Os
    35 I/O
    Supply Voltage - Min
    1.1 V
    Supply Voltage - Max
    1.47 V
    Brand
    Analog Devices
    Moisture Sensitive
    Yes
    Number of Timers/Counters
    9 Timer
    Operating Supply Voltage
    1.1 V to 1.47 V
    Product
    DSPs
    Factory Pack Quantity Factory Pack Quantity
    168
    Subcategory
    Embedded Processors & Controllers
    Tradename
    Blackfin
    Unit Weight
    12.500 g
    I/O Voltage
    1.8 V, 2.5 V, 3.3 V
    L1 Cache Instruction Memory
    16 kB
    L1 Cache Data Memory
    2 x 32 kB
