Description

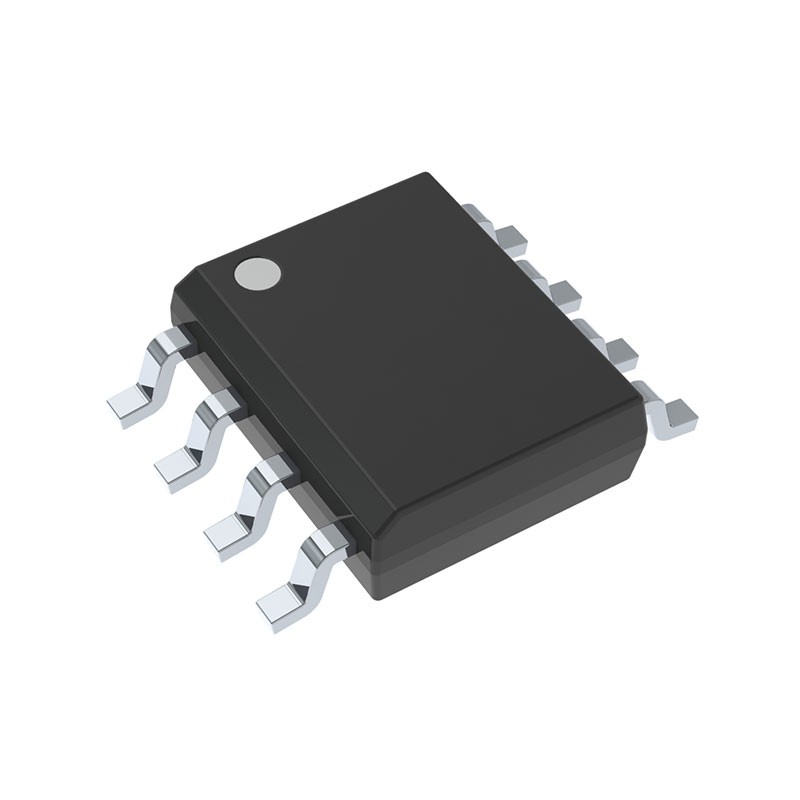

General Purpose Digital Isolator 2500Vrms 2 Channel 50Mbps 25kV/µs CMTI 8-SOIC (0.154', 3.90mm Width)
Product Details
10electronicpartsUK29628426ND
ISO7421FED
3 Items
Data sheet
- Manufacturer
- TEXAS INSTRUMENTS
- Operating temperature
- -40°C ~ 125°C
- Part status
- Active
- Series
- -
- Mounting Type
- Surface Mount
- Type
- General Purpose
- Number of Channels
- 2
- Data Rate
- 50Mbps
- Technology
- Capacitive Coupling
- Channel Type
- Unidirectional
- Packaging
- Bulk
- Supplier Device Package
- 8-SOIC
- Voltage - Supply
- 3V ~ 5.5V
- Voltage - Isolation
- 2500Vrms
- Isolated Power
- No
- Inputs - Side 1/Side 2
- 1/1
- Common Mode Transient Immunity (Min)
- 25kV/µs
- Propagation Delay tpLH / tpHL (Max)
- 11ns, 11ns
- Pulse Width Distortion (Max)
- 3.7ns
- Rise / Fall Time (Typ)
- 1.8ns, 1.7ns
