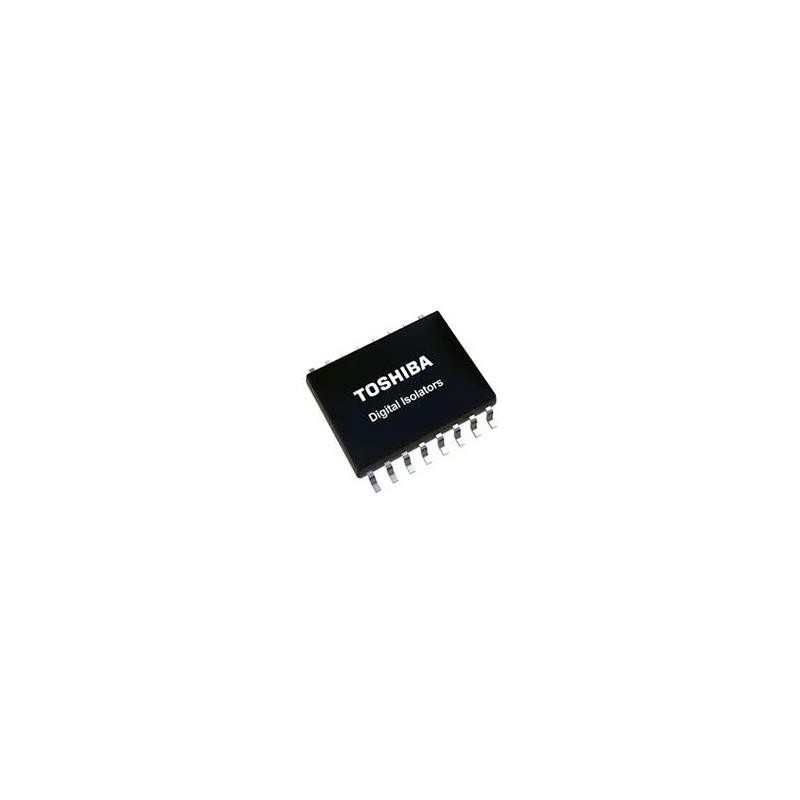

    1 pcs : DCL540C01(T,E - 4-CH (4:0) HIGH SPEED DIGITAL IS
    • 1 pcs : DCL540C01(T,E - 4-CH (4:0) HIGH SPEED DIGITAL IS

    1 pcs : DCL540C01(T,E - 4-CH (4:0) HIGH SPEED DIGITAL IS

    1electronicpartsUK264DCL540C01T,ETRND
    £22.16
    Delivery: 10-15 business days
    Quantity
    Last items in stock
    3 Items

    Description
    General Purpose Digital Isolator 5000Vrms 4 Channel 150Mbps 100kV/µs CMTI 16-SOIC (0.295', 7.50mm Width)
    Product Details
    Toshiba Semiconductor and Storage
    1electronicpartsUK264DCL540C01T,ETRND
    DCL540C01(T,E
    3 Items

    Data sheet

    Manufacturer
    Toshiba Semiconductor and Storage
    Operating temperature
    -40°C ~ 110°C
    Part status
    Active
    Series
    DCL540x01
    Mounting Type
    Surface Mount
    Type
    General Purpose
    Number of Channels
    4
    Data Rate
    150Mbps
    Technology
    Magnetic Coupling
    Channel Type
    Unidirectional
    Packaging
    Tape & Reel (TR)Cut Tape (CT)Digi-Reel®
    Supplier Device Package
    16-SOIC
    Voltage - Supply
    2.25V ~ 5.5V
    Voltage - Isolation
    5000Vrms
    Isolated Power
    Yes
    Inputs - Side 1/Side 2
    4/0
    Common Mode Transient Immunity (Min)
    100kV/µs
    Propagation Delay tpLH / tpHL (Max)
    18.3ns, 18.3ns
    Pulse Width Distortion (Max)
    2.8ns
    Rise / Fall Time (Typ)
    0.9ns, 0.9ns
