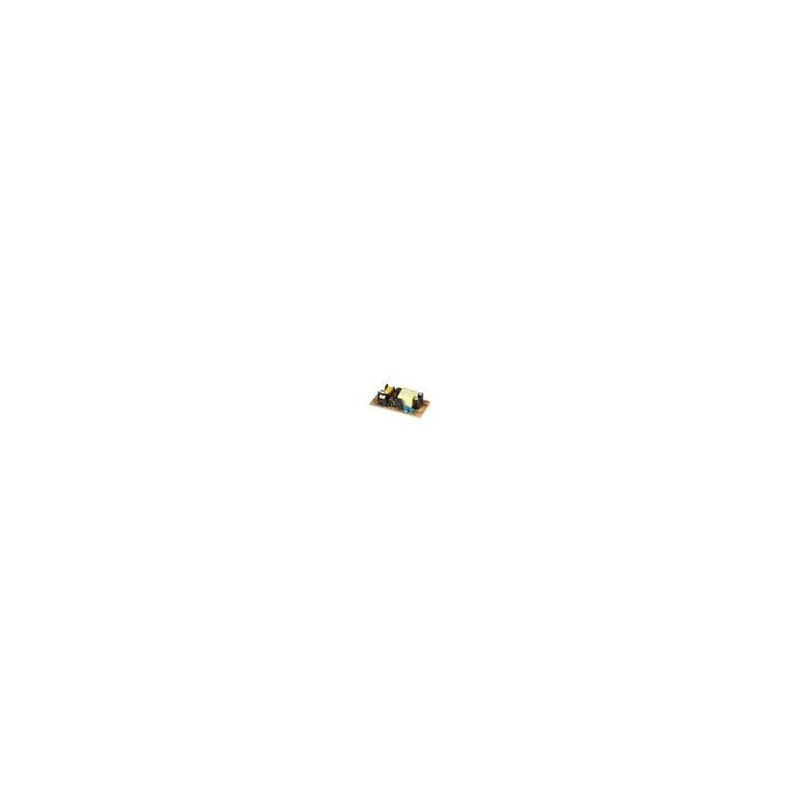

    1 pcs : CFM36SB480 - AC/DC Power Modules 36W 48V 750mA Class II PCB
    • 1 pcs : CFM36SB480 - AC/DC Power Modules 36W 48V 750mA Class II PCB

    1 pcs : CFM36SB480 - AC/DC Power Modules 36W 48V 750mA Class II PCB

    Allparts-UK/M/418-CFM36SB480
    CINCON
    £42.52
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    CFM36S 36W AC-DC Modules Cincon CFM36S 36W AC-DC Modules are 36W open-frame or encapsulated AC-DC modules with universal input and multiple output options in a 1.5' x 3' footprint. The Cincon CFM36S includes PCB mount or connector termination options. This AC-DC module series provides up to 89% efficiency, with continuous short circuit protection and over-voltage protection in a Class I or Class II type.
    Product Details
    CINCON
    Allparts-UK/M/418-CFM36SB480
    CFM36SB480
    10 Items

    Data sheet

    Manufacturer
    CINCON
    Width
    38.1 mm
    Height
    27.94 mm
    Length
    76.2 mm
    Output power
    36 W
    Number of outputs
    1 Output
    Input voltage
    100 VAC to 240 VAC
    Series
    CFM36S
    Maximum Operating Temperature
    + 80 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB
    Isolation Voltage
    4 kVAC
    Product Type
    AC-DC Power Modules
    Load Regulation
    Regulated
    Product Category
    AC/DC Power Modules
    RoHS
    Details
    Brand
    Cincon
    Factory Pack Quantity Factory Pack Quantity
    1
    Subcategory
    AC-DC Power Supply
    Output Voltage-Channel 1
    48 V
    Output Current-Channel 1
    750 mA
    Industry
    Industrial
    Output Voltage-Channel 2
    -
    Output Current-Channel 2
    -
    Open Frame/Enclosed
    Open Frame
    Input Frequency
    50 Hz to 60 Hz
