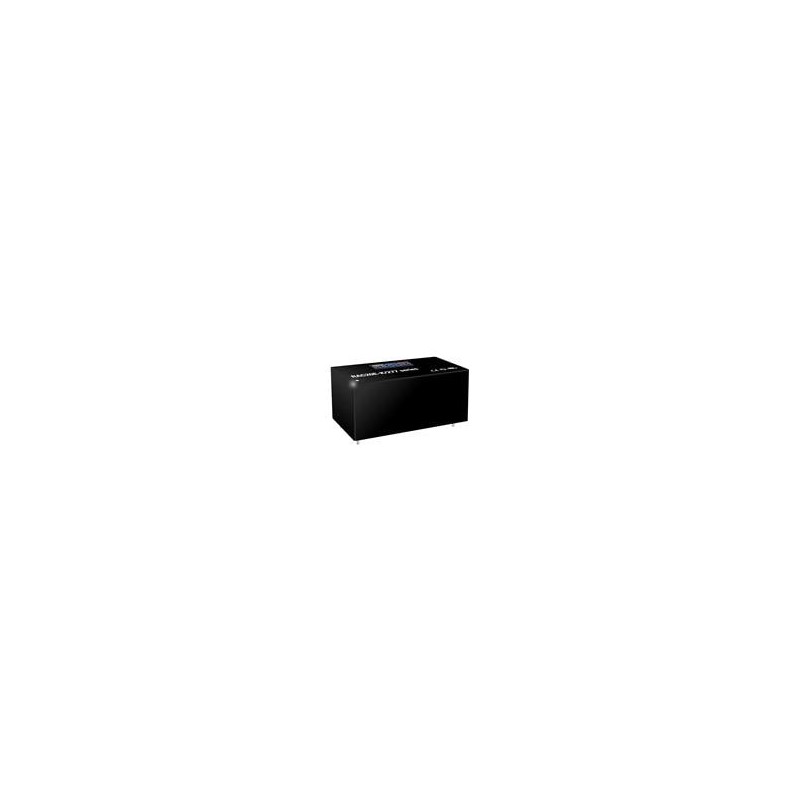

    1 pcs : RAC20E-24SK/277 - AC/DC Power Modules 20W 85-305Vin 24Vout 833mA
    • 1 pcs : RAC20E-24SK/277 - AC/DC Power Modules 20W 85-305Vin 24Vout 833mA

    1 pcs : RAC20E-24SK/277 - AC/DC Power Modules 20W 85-305Vin 24Vout 833mA

    Allparts-UK/M/919-RAC20E-24SK/277
    £31.09
    Delivery: 7-10 business days
    Quantity
    10 Items

    Description
    RAC20E-K/277 20W Single Output AC/DC Converters RECOM Power RAC20E-K/277 20W Single Output AC/DC Converters are designed to meet general-purpose requirements for a wide variety of equipment for the IoT, ITE, and industrial markets. These encapsulated power supplies feature 4kVAC isolation and over voltage category OVCIII and 100VAC to 277VAC nominal input voltages. At OVCII usage, the operating altitude is rated up to 5000m. For EMC compatibility in floating output configurations, EN55032 class 'B' limits are met without any external components. The outputs are protected against overcurrent and short circuits, while the internal fuse provides input protection.
    Product Details
    RECOM Power
    Allparts-UK/M/919-RAC20E-24SK/277
    RAC20E-24SK/277
    10 Items

    Data sheet

    Manufacturer
    RECOM
    Dimensions
    52.7 mm x 27.6 mm x 23 mm
    Width
    27.6 mm
    Height
    23 mm
    Length
    52.7 mm
    Output power
    20 W
    Number of outputs
    1 Output
    Input voltage
    85 VAC to 305 VAC
    Series
    RAC20E-K/277
    Maximum Operating Temperature
    + 90 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    PCB
    Isolation Voltage
    4 kVAC
    Product Type
    AC-DC Power Modules
    Load Regulation
    Regulated
    Product Category
    AC/DC Power Modules
    Packaging
    Tube
    RoHS
    Details
    Brand
    RECOM Power
    Factory Pack Quantity Factory Pack Quantity
    15
    Subcategory
    AC-DC Power Supply
    Output Voltage-Channel 1
    24 VDC
    Output Current-Channel 1
    833 mA
    Industry
    Industrial
    Output Voltage-Channel 2
    -
    Output Current-Channel 2
    -
    Open Frame/Enclosed
    Enclosed
    Input Frequency
    47 Hz to 63 Hz
