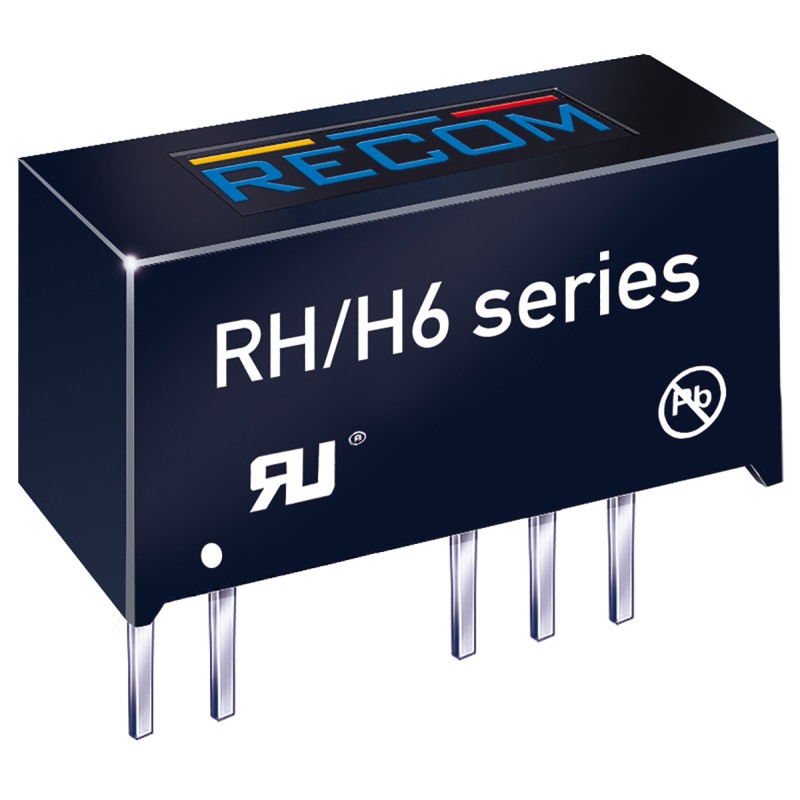

1 Tube of 25 - Recom RH DC-DC Converter, ±15V dc/ ±33mA Output, ±4.5 V dc, ±5.5 V dc Input, 1W, Through Hole, +90°C Max Temp -40
  • 1 Tube of 25 - Recom RH DC-DC Converter, ±15V dc/ ±33mA Output, ±4.5 V dc, ±5.5 V dc Input, 1W, Through Hole, +90°C Max Temp -40

1 Tube of 25 - Recom RH DC-DC Converter, ±15V dc/ ±33mA Output, ±4.5 V dc, ±5.5 V dc Input, 1W, Through Hole, +90°C Max Temp -40

Allparts-UK/15/R/166-6591
RECOM
£491.63
Quantity
Out-of-Stock

Product Details
RECOM
Allparts-UK/15/R/166-6591
RH-0515D/H6

Data sheet

Manufacturer
RECOM
Width
7.05mm
Length
19.65mm
Output voltage
±15V dc
Number of outputs
2
Depth
10.2mm
Efficiency
78 - 80%
A-Supplier
Allparts-UK-R
Series
RH
Mounting Type
Through Hole
Standards Met
A12:2011, E-358085, EN 60950-1, EN 60950-1:2006, IEC/EN 60601-1 Certified, IEC/EN 60601-1: 2006, UL 60950-1, UL 94 V-0, UL60950
Power Rating
1W
Output Current
±33mA
Isolation Voltage
4kV dc
Input Voltage Range
±4.5 V dc, ±5.5 V dc
Load Regulation
0.1
Output Voltage Adjustment Range
±14.25 V dc, ±15.75V dc
Input Voltage Nominal
±5 V dc
Isolated
Yes
Package
SIP 7
