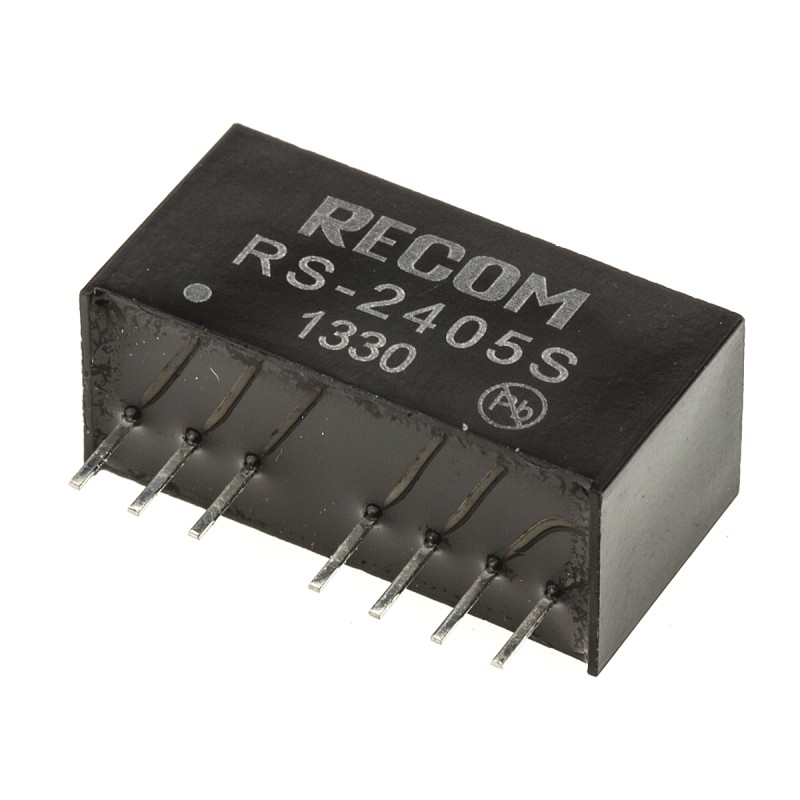

1 Tube of 22 - Recom RS DC-DC Converter, 5V dc/ 400mA Output, 18 - 36 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min
  • 1 Tube of 22 - Recom RS DC-DC Converter, 5V dc/ 400mA Output, 18 - 36 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min
  • 1 Tube of 22 - Recom RS DC-DC Converter, 5V dc/ 400mA Output, 18 - 36 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min

1 Tube of 22 - Recom RS DC-DC Converter, 5V dc/ 400mA Output, 18 - 36 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min

Allparts-UK/15/R/162-2707
RECOM
£733.91
Quantity
Out-of-Stock

Product Details
RECOM
Allparts-UK/15/R/162-2707
RS-2405S

Data sheet

Manufacturer
RECOM
Width
9.2mm
Length
21.8mm
Output voltage
5V DC
Number of outputs
1
Depth
11.1mm
Efficiency
78%
A-Supplier
Allparts-UK-R
Series
RS
Mounting Type
Through Hole
Standards Met
cRUus, IEC/EN 60601-1, IEC/EN 60950-1, UL 60950-1
Power Rating
2W
Output Current
400mA
Isolation Voltage
500V ac
Input Voltage Range
18 - 36 V dc
Load Regulation
±0.5%
Medical Approved
Yes
Input Voltage Nominal
24 V dc
Isolated
Yes
Package
SIP
