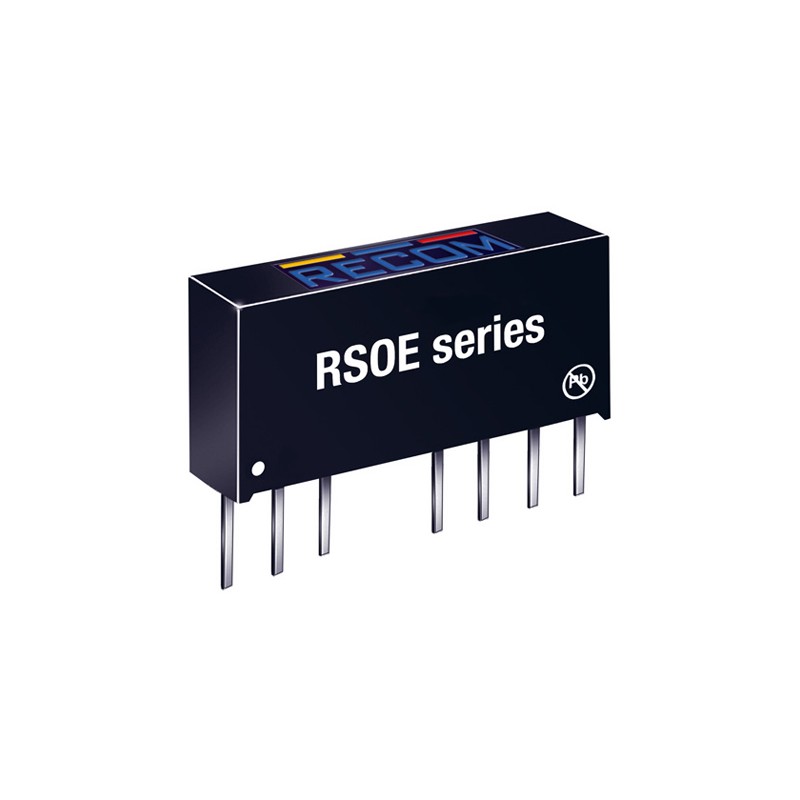

1 Tube of 22 - Recom RSOE DC-DC Converter, 5V dc/ 200mA Output, 18 - 36 V dc Input, 1W, Through Hole, +80°C Max Temp -40°C Min
  • 1 Tube of 22 - Recom RSOE DC-DC Converter, 5V dc/ 200mA Output, 18 - 36 V dc Input, 1W, Through Hole, +80°C Max Temp -40°C Min

1 Tube of 22 - Recom RSOE DC-DC Converter, 5V dc/ 200mA Output, 18 - 36 V dc Input, 1W, Through Hole, +80°C Max Temp -40°C Min

Allparts-UK/15/R/139-2819
RECOM
£318.74
Quantity
Out-of-Stock

Product Details
RECOM
Allparts-UK/15/R/139-2819
RSOE-2405S/H2

Data sheet

Manufacturer
RECOM
Width
9.2mm
Length
21.8mm
Output voltage
5V DC
Number of outputs
1
Depth
11.1mm
Efficiency
80%
A-Supplier
Allparts-UK-R
Series
RSOE
Mounting Type
Through Hole
Standards Met
C22.2 No. 60950-1-07, C22.2 No. 62368-1-14, CB, cULus E224736 Recognised, EN 55022/55024, IEC/EN 62368-1, UL 60950, UL 62368-1
Power Rating
1W
Output Current
200mA
Isolation Voltage
2kV dc
Input Voltage Range
18 - 36 V dc
Load Regulation
±0.5%
Input Voltage Nominal
24 V dc
Isolated
Yes
Package
SIP 8
