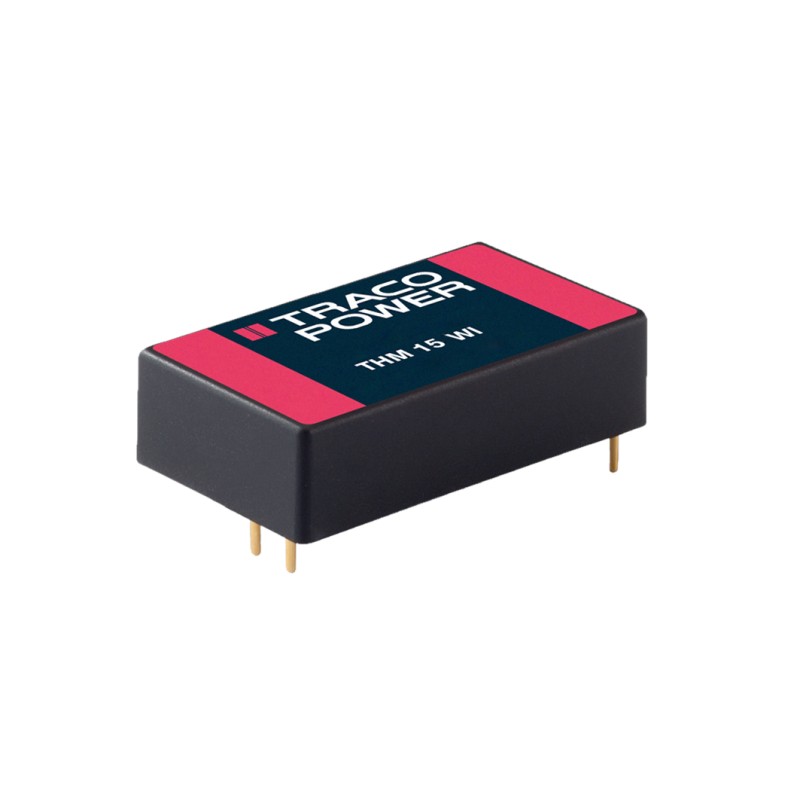

1 Tube of 10 - TRACOPOWER THM 15WI DC-DC Converter, ±15V dc/ ±500mA Output, 9 - 36 V dc Input, 15W, Through Hole, +85°C Max

Data sheet

Manufacturer

TRACOPOWER

Width

25.4mm

Length

40.6mm

Output voltage

±15V dc

Number of outputs

2

Depth

10.2mm

Efficiency

88%

A-Supplier

Allparts-UK-R

Series

THM 15WI

Mounting Type

Through Hole

Standards Met

ANSI/AAMI ES 60601-1, CB, EMC, EN 55011, EN 55032, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, ES 60601-1, IEC 60601-1, IEC 60601-1-2, IEC/EN 60601-1-2, MIL-STD-810F

Power Rating

15W

Output Current

±500mA

Isolation Voltage

5kV ac

Input Voltage Range

9 - 36 V dc

Load Regulation

0.01

Medical Approved

Yes

Input Voltage Nominal

24 V dc

Isolated

Yes

Package

1.6 x 1 in
