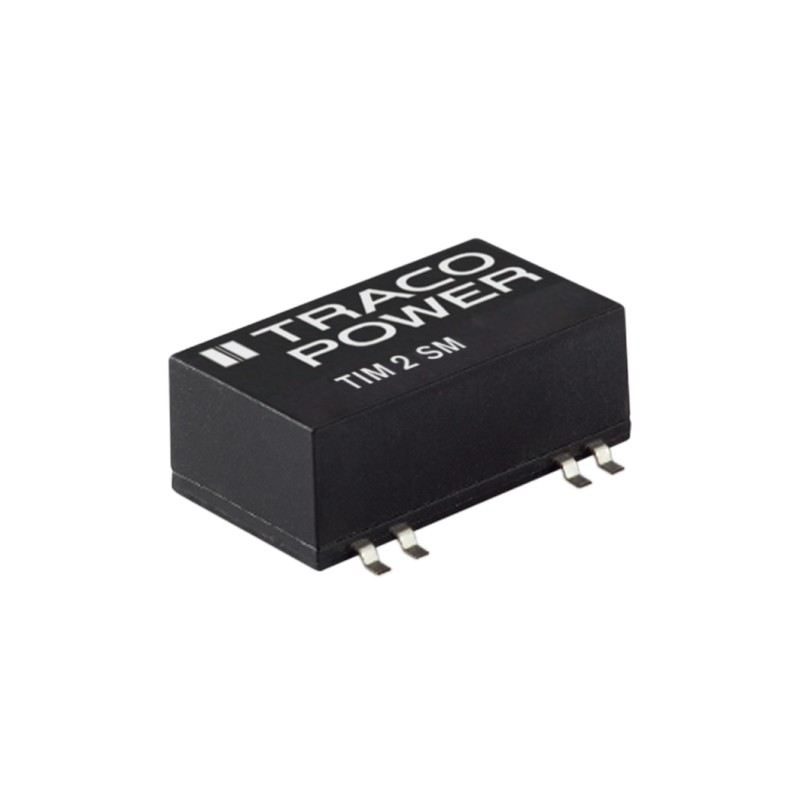

1 Tube of 10 - TRACOPOWER TIM 2 DC-DC Converter, 5V dc/ 400mA Output, 18 - 36 V dc Input, 2W, Surface Mount, +105°C Max Temp

Data sheet

Manufacturer

TRACOPOWER

Width

14.4mm

Length

24.3mm

Output voltage

5V DC

Number of outputs

1

Depth

10.5mm

Efficiency

78%

A-Supplier

Allparts-UK-R

Series

TIM 2

Mounting Type

Surface Mount

Standards Met

AAMI/ANSI ES 60601-1, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, IEC/EN 60601-1, MIL-STD-810F

Power Rating

2W

Output Current

400mA

Isolation Voltage

5kV ac

Input Voltage Range

18 - 36 V dc

Load Regulation

0.01

Medical Approved

Yes

Input Voltage Nominal

24 V dc

Isolated

Yes

Package

SMD 16
