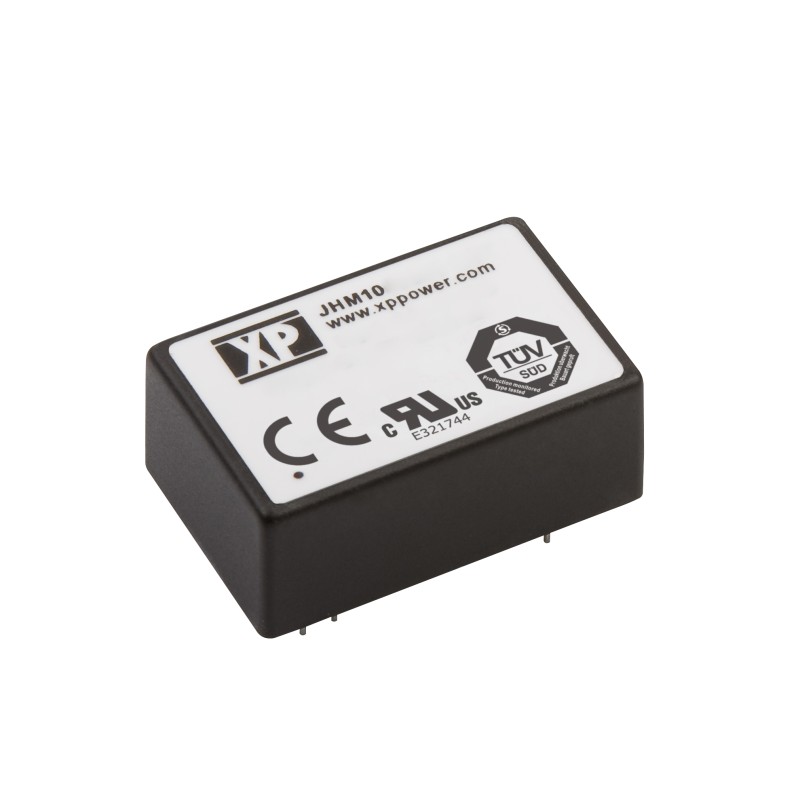

5 pcs - XP Power JHM DC-DC Converter, ±12V dc/ ±420mA Output, 9 - 18 V dc Input, 10W, Through Hole, +80°C Max Temp -40°C

Data sheet

Manufacturer

XP POWER

Width

20.32mm

Length

31.75mm

Output voltage

±12V dc

Number of outputs

2

Depth

10.4mm

A-Supplier

Allparts-UK-R

Series

JHM

Mounting Type

Through Hole

Standards Met

ANSI/AAMI ES 60601-1, CB, CSA 22.2 No. 60601-1:2008, EN 55011, EN 55022, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61204-3, IEC 60601-1, IEC 60601-1-2, MIL-HDBK-217F, TUV, UL

Power Rating

10W

Output Current

±420mA

Isolation Voltage

4kV ac

Input Voltage Range

9 - 18 V dc

Load Regulation

±1 (10 - 100% Load) %, ±2 (0 - 10% Load) %

Medical Approved

Yes

Input Voltage Nominal

12 V dc

Isolated

Yes

Railway Approved

No

Package

DIP 24
