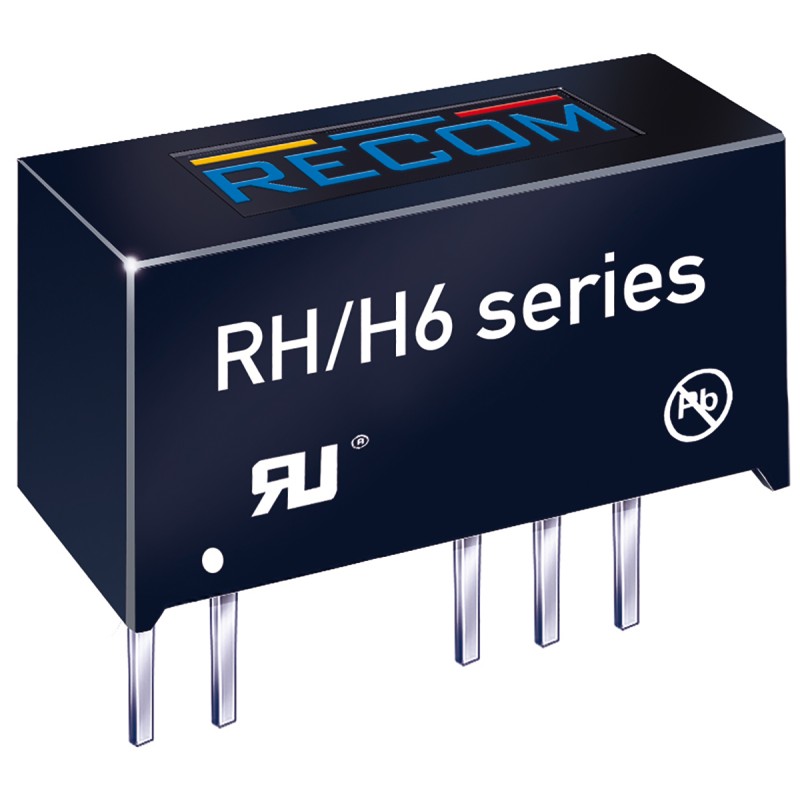

    1 pcs - Recom RH DC-DC Converter, ±12V dc/ ±42mA Output, ±10.8 V dc, ±13.2 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C
    • 1 pcs - Recom RH DC-DC Converter, ±12V dc/ ±42mA Output, ±10.8 V dc, ±13.2 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C

    1 pcs - Recom RH DC-DC Converter, ±12V dc/ ±42mA Output, ±10.8 V dc, ±13.2 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C

    Allparts-UK/15/R/904-8660
    RECOM
    £26.82
    Delivery: 4-7 business days
    Quantity
    23 Items

    Product Details
    RECOM
    Allparts-UK/15/R/904-8660
    RH-1212D/H6
    23 Items

    Data sheet

    Manufacturer
    RECOM
    Width
    7.05mm
    Length
    19.65mm
    Output voltage
    ±12V dc
    Number of outputs
    2
    Depth
    10.2mm
    Efficiency
    77 - 80%
    A-Supplier
    Allparts-UK-R
    Series
    RH
    Mounting Type
    Through Hole
    Standards Met
    A12:2011, E-358085, EN 60950-1, EN 60950-1:2006, IEC/EN 60601-1 Certified, IEC/EN 60601-1: 2006, UL 60950-1, UL 94 V-0, UL60950
    Power Rating
    1W
    Output Current
    ±42mA
    Isolation Voltage
    4kV dc
    Input Voltage Range
    ±10.8 V dc, ±13.2 V dc
    Load Regulation
    0.1
    Output Voltage Adjustment Range
    ±11.4 V dc, ±12.6V dc
    Input Voltage Nominal
    ±12 V dc
    Isolated
    Yes
    Package
    SIP 7
