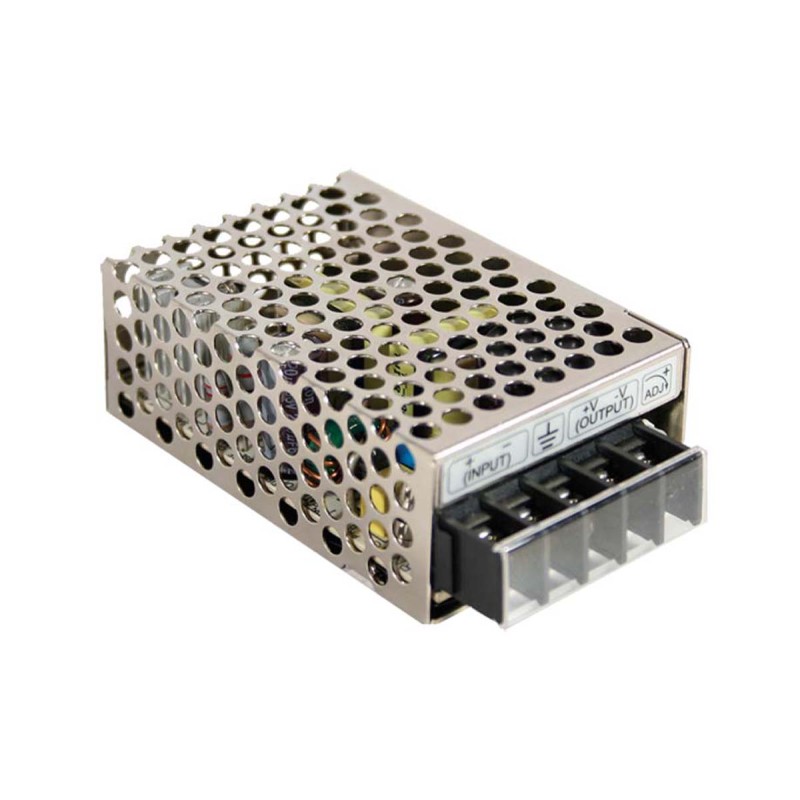

    1 pcs - MEAN WELL DC-DC Converter, 24V dc/ 625mA Output, 18 - 36 V dc Input, 15W, Chassis Mount, +60°C Max Temp -10°C
    • 1 pcs - MEAN WELL DC-DC Converter, 24V dc/ 625mA Output, 18 - 36 V dc Input, 15W, Chassis Mount, +60°C Max Temp -10°C

    1 pcs - MEAN WELL DC-DC Converter, 24V dc/ 625mA Output, 18 - 36 V dc Input, 15W, Chassis Mount, +60°C Max Temp -10°C

    Allparts-UK/15/R/678-3559
    MEAN WELL
    £52.01
    Delivery: 4-7 business days
    Quantity
    16 Items

    Product Details
    MEAN WELL
    Allparts-UK/15/R/678-3559
    SD-15B-24
    16 Items

    Data sheet

    Manufacturer
    MEAN WELL
    Width
    51mm
    Length
    78mm
    Output voltage
    24V DC
    Number of outputs
    1
    Depth
    28mm
    A-Supplier
    Allparts-UK-R
    Mounting Type
    Chassis Mount
    Standards Met
    3, 4, 5, 6, 8, EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A
    Power Rating
    15W
    Output Current
    625mA
    Isolation Voltage
    2kV ac
    Input Voltage Range
    18 - 36 V dc
    Load Regulation
    ±0.2%
    Output Voltage Adjustment Range
    21.6 - 26.4V
    Input Voltage Nominal
    24 V dc
    Isolated
    Yes
