Description

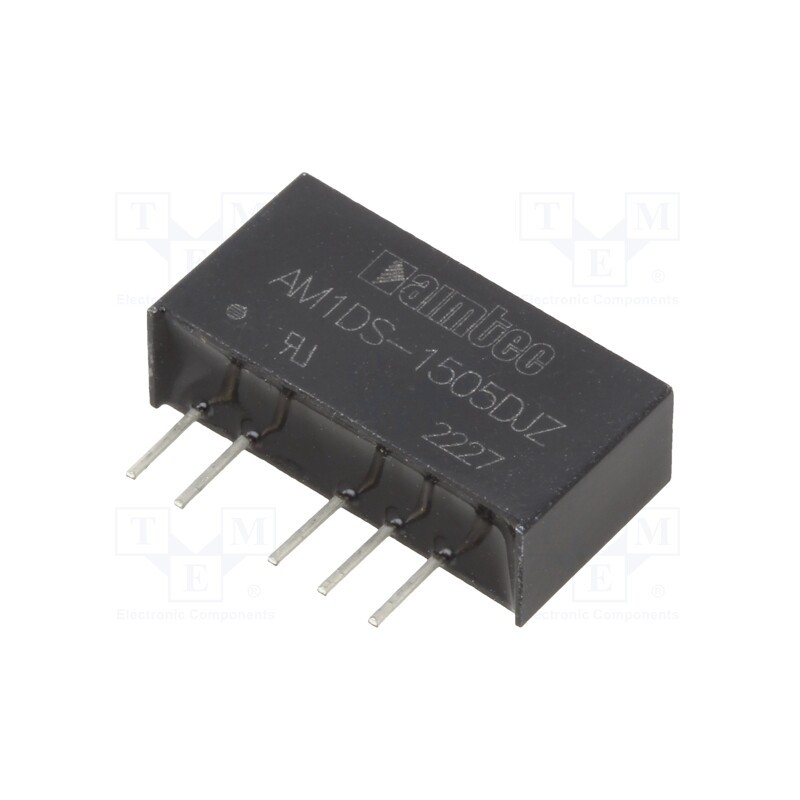

Converter: DC/DC, 1W, Uin: 13.5÷16.5V, Uout: 5VDC, Uout2: -5VDC, SIP7
Manufacturer part number: AM1DS-1505DJZ
Allparts-UK Symbol: AM1DS-1505DJZ
Product Details
10(electronicparts) AM1DS1505DJZ
AM1DS-1505DJZ
5 Items
Data sheet
- Manufacturer
- AIMTEC
- Mounting
- THT
- Operating temperature
- -40...105°C
- Body dimensions
- 6x19.65x10.16mm
- Case
- SIP7
- Manufacturer series
- AM1DS-JZ
- ProtectionOCP - Over Current Protection OPP - Over Power Protection OVP - Under Voltage Protection SCP - Short Circuit Protectio
- short circuit protection SCP
- Output voltage
- 5V DC
- Power
- 1W
- Number of outputs
- 2
- Type of converter
- DC/DC
- Input voltage
- 13.5...16.5V
- Efficiency
- 0.8
- Insulation voltage
- 1.5kV DC
- Output voltage 2
- -5V DC
- Output current 2
- 0.1A
