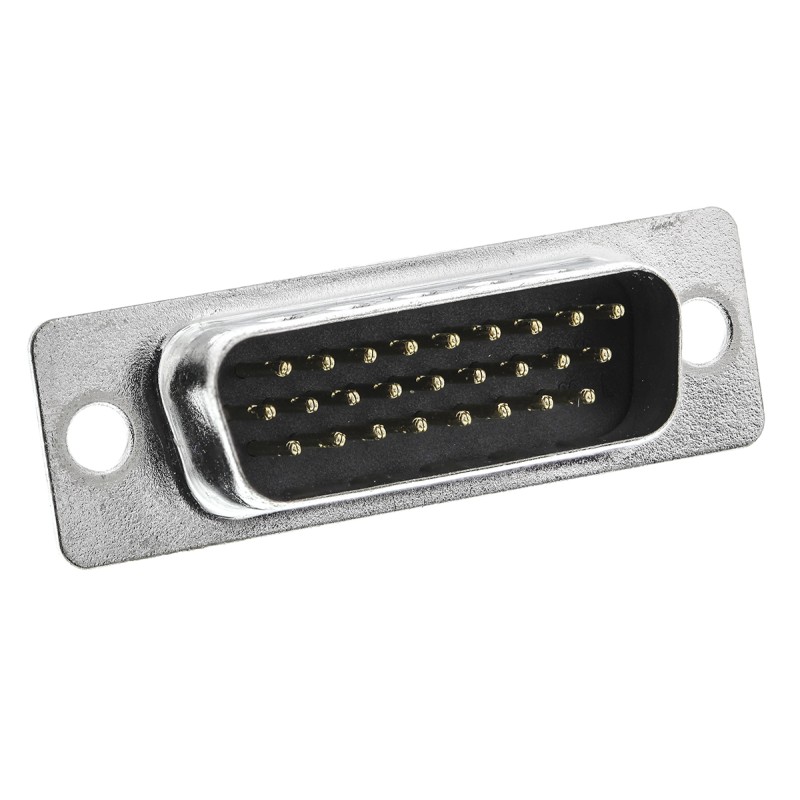

10 pcs - L717HDA26P Amphenol HD 26 Way Through Hole D-sub Connector Plug
    • 10 pcs - L717HDA26P Amphenol HD 26 Way Through Hole D-sub Connector Plug
    • 10 pcs - L717HDA26P Amphenol HD 26 Way Through Hole D-sub Connector Plug

    10 pcs - L717HDA26P Amphenol HD 26 Way Through Hole D-sub Connector Plug

    10(Allparts)6919020
    10 pcs - L717HDA26P Amphenol HD 26 Way Through Hole D-sub Connector Plug
    £53.16
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    Amphenol SD Series High Density D-Sub Plug Connectors with Solder Cup TerminalsSD series high density D-Sub plug connectors with solder cup terminals and precision stamped and formed contacts. These SD series HD d-sub plug connectors have a tin plated steel shell with dimples, a glass-filled thermoplastic UL 94V-0 insulator with closed entry contact cavities, gold flash plated pin contacts and 3.05 holes for front mounting. Typical applications for these SD series high density d-sub plug connectors include industrial, telecom and any industry standard I/O applications.StandardsConnectors according to: MIL C24308 - NFC 93425-HE5
    Product Details
    Amphenol ICC
    10(Allparts)6919020
    L717HDA26P
    10 Items

    Data sheet

    Manufacturer
    Amphenol ICC
    Dimensions
    39.1 x 12.55 x 22.22mm
    Width
    12.55mm
    Length
    39.1mm
    Current rating
    3A
    Contact material
    brass
    Contact plating
    Gold
    Depth
    22.22mm
    A-Supplier
    Allparts-UK/15/R-10
    Series
    HD
    Maximum Operating Temperature
    +125°C
    Mounting Type
    Through Hole
    Minimum Operating Temperature
    -55.0°C
    Housing Material
    Steel
    Number of Contacts
    26
    Gender
    Male
    Termination Method
    Solder
    Body Orientation
    Straight
