10 pcs - 2-1991253-5 TE Connectivity 1991253 Series PA D Sub Backshell, 25 Way
    • 10 pcs - 2-1991253-5 TE Connectivity 1991253 Series PA D Sub Backshell, 25 Way

    10 pcs - 2-1991253-5 TE Connectivity 1991253 Series PA D Sub Backshell, 25 Way

    10(Allparts)7567061
    10 pcs - 2-1991253-5 TE Connectivity 1991253 Series PA D Sub Backshell, 25 Way
    £52.12
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description

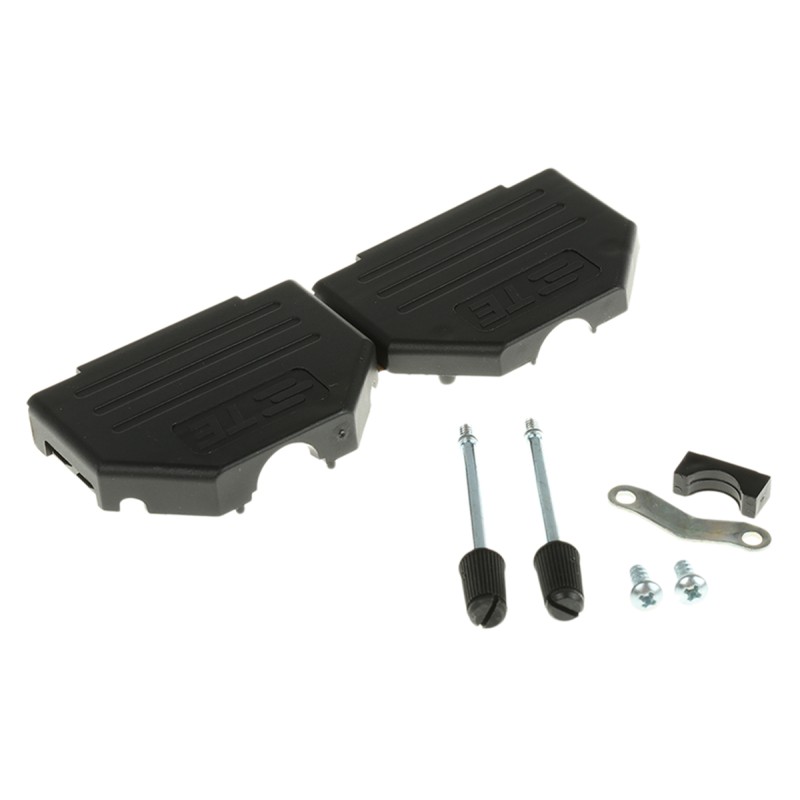

    TE Connectivity Plastic Backshell for D-Subminiature ConnectorThermoplastic backshell for use with D-subminiature connectors. These backshells have a clam type shell with a 180° cable exit angle and accept a cable insulation diameter range of 3.00 to 11mm. Each d-subminiature backshell consists of the following components:2 x polyamide jack screw knobs2 x zinc plated carbon steel jackscrews with a 4-40 thread size1 x polyamide cable clamp base1 x zinc plated carbon steel cable clamp2 x zinc plated carbon steel fixing screws1 x polyamide backshell bodyTE Connectivity AMPLIMITE D-Subminiature Connectors
    Product Details
    10(Allparts)7567061
    2-1991253-5
    10 Items

    Data sheet

    Manufacturer
    TE Connectivity
    Colour
    black
    A-Supplier
    Allparts-UK/15/R-10
    Series
    1991253
    Housing Material
    PA
    Number of Contacts
    25
    Body Orientation
    Straight
