Cylinder piston rings quad atv 110 125 aluminum

Name: Reinforced Tuning Aluminum Cylinder!!! set 110ccm

Symbol:113-1

Weight 1pc (kg):0

Description and technical data:

Thanks to the use of aluminum, the cylinder emits heat better, is lighter and stronger.

Ideal solution for people who want to replace the cylinder with a new one, which will provide better performance and durability thanks to the use of aluminum

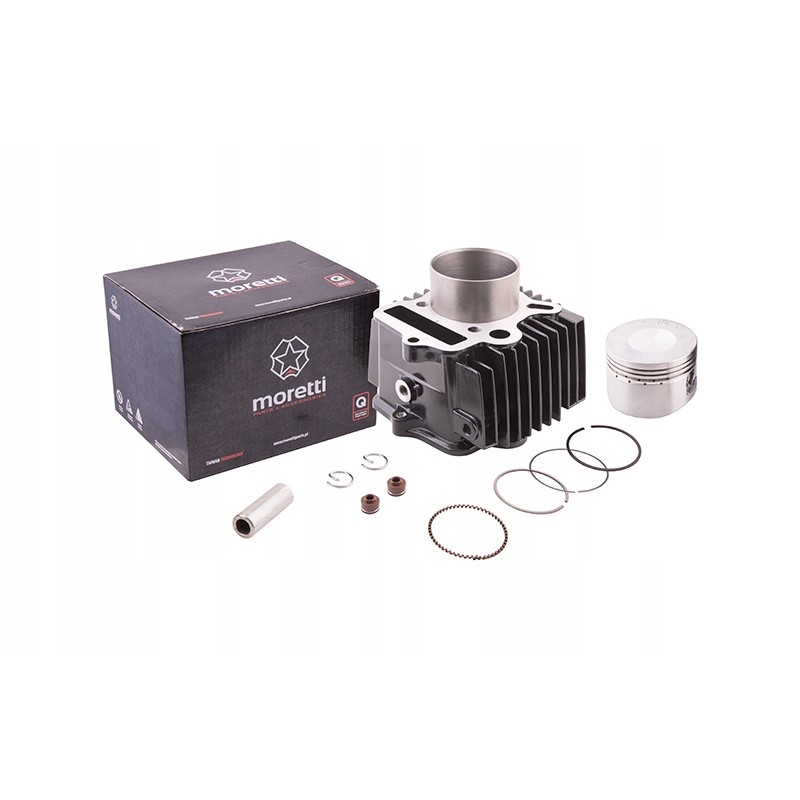

Aluminum cylinder 110ccm, complete, air-cooled

- cylinder liner height 95mm

- cylinder height 69mm

- internal diameter fi 52.4mm

- diameter piston pin fi 13

- measured from the head side

- diagonal pin spacing, measured from the center to the center of the mounting hole 70mm

- pin spacing from the timing side, measured from the center to the center of the mounting hole 49mm

- pin spacing from the side opposite the timing , measured from the center to the center of the mounting hole 46mm

- adapted to the timing chain

- black color

- head and cylinder gaskets and complete piston included
