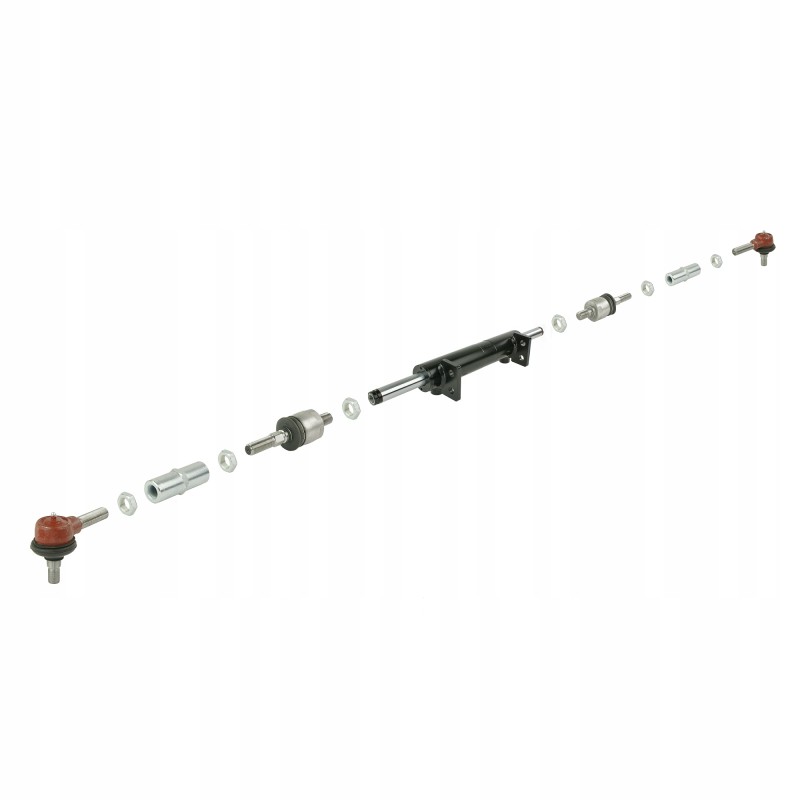

Cylinder, transverse actuator, power steering, C 360

TRANSVERSE POWER CYLINDERWITH A PISTON ROD WITH A 2x80mm STROKE INCLUDING LONGITUDINAL AND BALL JOINTSProduction:

Original product of the Hydrolider brand, symbol: 1.07.00.051

Application:

Widely used in hydraulic power steering systems in vehicles, machines and tractors in agriculture, construction and industry.

The actuator can be used for proprietary support systems in small and medium-sized tractors, including: C-330, C-360, T-25, Zetor 5211 - 7211 and others.

DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you see in the photo are only the metal elements from which the actuator is made. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider cylinders, which are the only ones that guarantee long-term reliability.

A cylinder with a double piston rod extending on both sides, mounted directly to the front axle. This is a modern solution used in the latest machine models by top manufacturers. The advantage of transverse actuators is driving stability and high precision in machine control. The transverse actuator ensures the same number of steering wheel turns when turning right and left.

Dimensions of the complete actuator with the piston rod in the central position and at the extreme positions:

The total width of the complete actuator including joints and connectors depends on the degree of twisting of the individual parts of the set.

After the maximum twisting of components, the minimum distance between the axes of the end pins of ball joints is 1010mm, the maximum spacing while maintaining a safe level of thread twisting is 1110mm.
