Power steering actuator mf sad 3502 hydrolider set

HYDRAULIC CYLINDER FOR TRANSVERSE SUPPORT FOR MF SADOWNICZY TRACTOR AND URSUS 3502, 2802 WITH DOUBLE PISTON ROD WITH A 2x55 mm stroke

Production:

Original Hydrolider brand cylinder, symbol: 1.07.00.162

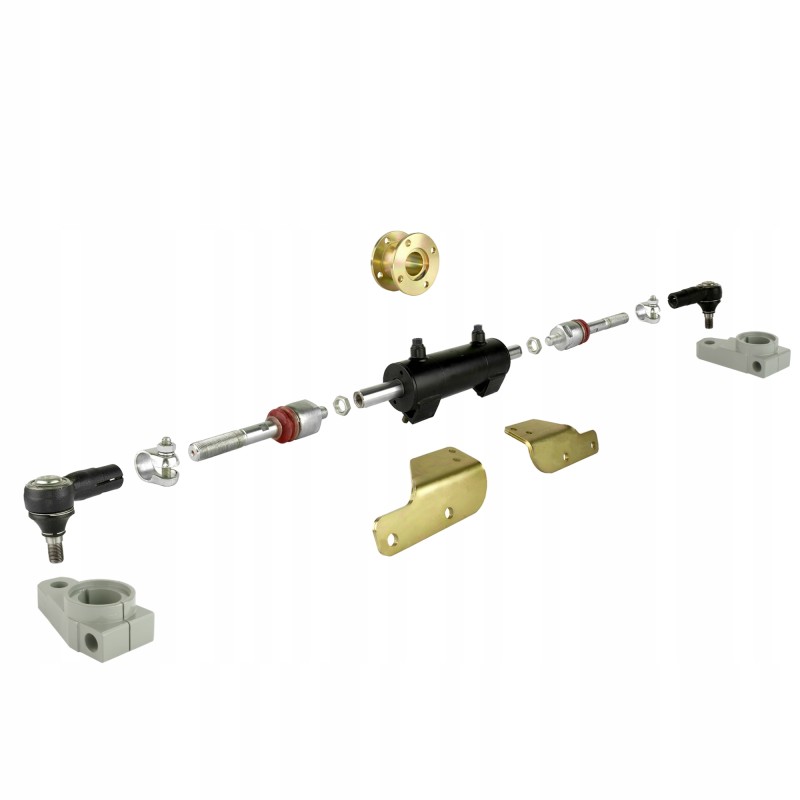

Set includes:

actuator

two longitudinal joints

two joints ball joints

two nuts countering

two clamps

distance to move the radiator fan away

two mounting brackets to the axle

two steering knuckle arms

screws and nuts for mounting

Application:

Original power steering cylinder for the MF orchard tractor and Ursus orchard 3502, 2802.

Widely used in hydraulic power steering systems in vehicles, machines and tractors in agriculture, construction and industry. The actuator can be used for proprietary support systems in small and medium-sized orchard, agricultural, horticultural, forestry vehicles, etc.

DEAR CUSTOMER, READ THIS BEFORE YOU CHOOSE AN ACTUATOR SUPPLIER: What you can see in the photo are only the metal elements from which the actuator is made. In fact, the actuator is only worth as much as the internal seals used in its construction. We ensure that all our actuators have reinforced seals that are not manufactured in China or other Far Eastern countries. If you care about quality and durability, choose Hydrolider cylinders, which are the only ones that guarantee long-term reliability.

A cylinder with a double piston rod extending on both sides, mounted directly to the front axle. This is a modern solution used in the latest machine models by top manufacturers. The advantage of transverse actuators is high driving stability and high precision in machine control. The transverse actuator ensures the same number of steering wheel turns when turning right and left.

Dimensions of the actuator with the piston rod in the central position and at the extreme positions:

The total width of the complete actuator, including joints and connectors, depends on the degree of twisting of the individual parts of the set. After the maximum twisting of the components, the minimum distance between the axes of the end pins of the ball joints is 780mm, the maximum spacing while maintaining a safe level of thread twisting is 830mm.
