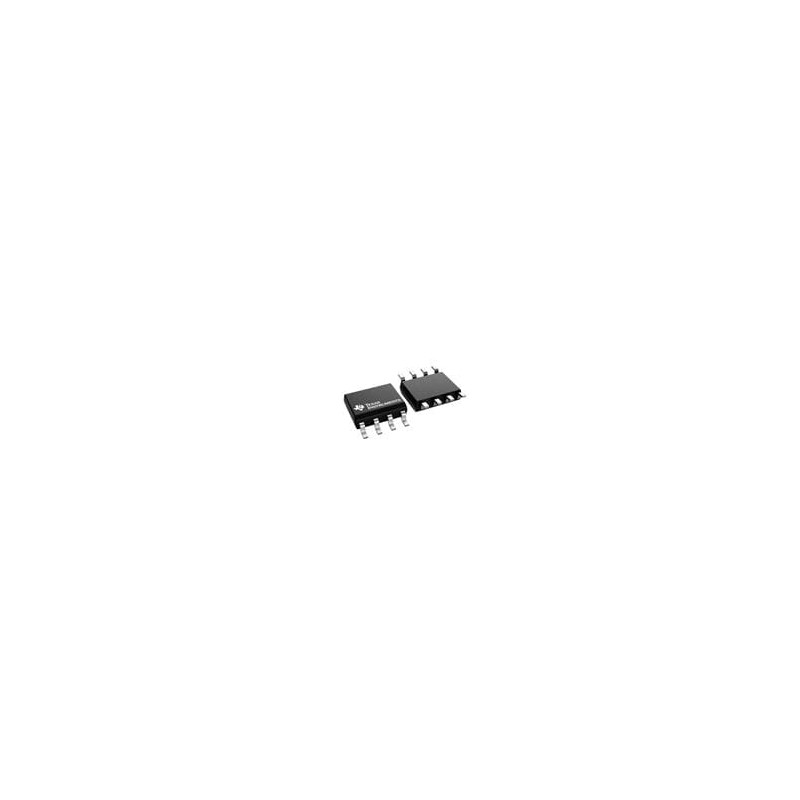

10 pcs : INA296B2IDR - Current Sense Amplifiers -5-V to 110-V, bidirectional, 1.1-MHz 8-V/us high-precision current sense amplif
    • 10 pcs : INA296B2IDR - Current Sense Amplifiers -5-V to 110-V, bidirectional, 1.1-MHz 8-V/us high-precision current sense amplif

    10 pcs : INA296B2IDR - Current Sense Amplifiers -5-V to 110-V, bidirectional, 1.1-MHz 8-V/us high-precision current sense amplif

    10(Allparts)595INA296B2IDR
    10 pcs : INA296B2IDR - Current Sense Amplifiers -5-V to 110-V, bidirectional, 1.1-MHz 8-V/us high-precision current sense amplifier 8-SOIC -40 to 125
    £53.50
    Delivery: 4-7 business days
    Quantity
    10 Items

    Description
    INA296x/INA296x-Q1 Current Sense Amplifiers Texas Instruments INA296x/INA296x-Q1 Ultraprecise Current Sense Amplifiers measure voltage drops across shunt resistors over a wide -5V to 110V common-mode range, independent of the supply voltage. High-precision current measurements result from a combination of a low offset voltage (±10µV maximum) and a high DC CMRR (typical 166dB) with a small gain error (±0.01% maximum). The bidirectional INA296x/INA296x-Q1 is designed for high-voltage DC measurements and high-speed applications (such as transient detection and fast overcurrent protection) with a high 1.1MHz signal bandwidth and fast settling time.
    Product Details
    10(Allparts)595INA296B2IDR
    INA296B2IDR
    10 Items

    Data sheet

    Manufacturer
    TEXAS INSTRUMENTS
    Maximum Operating Temperature
    + 125 C
    Minimum Operating Temperature
    - 40 C
    Mounting Style
    SMD/SMT
    Product Type
    Current Sense Amplifiers
    Package/Case
    SOIC-8
    Product Category
    Current Sense Amplifiers
    RoHS
    Details
    Supply Voltage - Min
    2.7 V
    Supply Voltage - Max
    20 V
    Brand
    Texas Instruments
    Moisture Sensitive
    Yes
    Product
    Bidirectional Current Sense Amplifiers
    Factory Pack Quantity Factory Pack Quantity
    2500
    Subcategory
    Amplifier ICs
