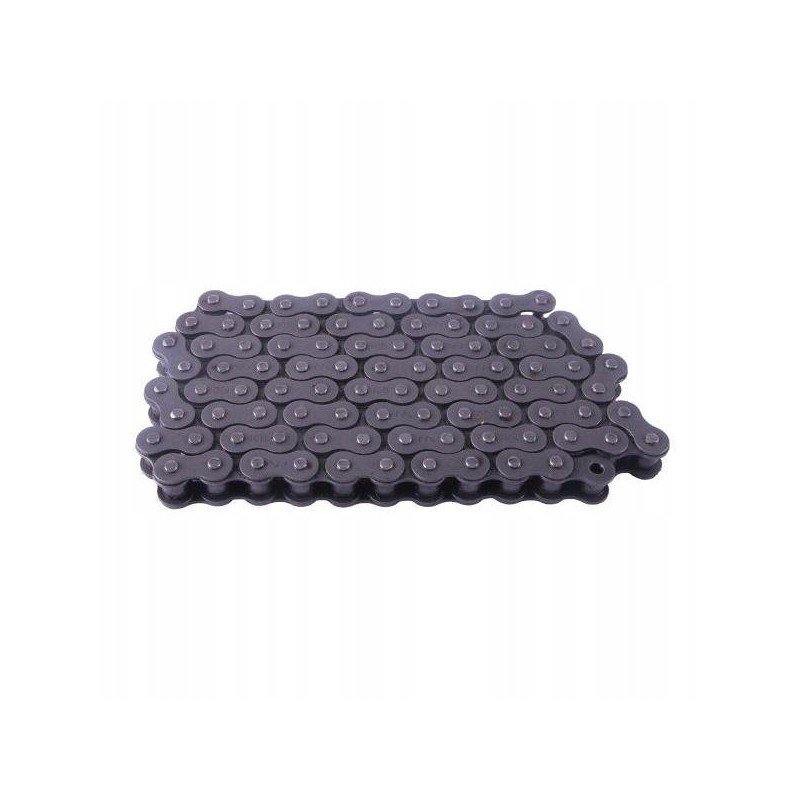

Bizon roller chain in l10b1 92ps Warynski

Roller chain 10B-1-92Ps application Bizon 5040995810 Waryński EAN: 5902287119077

SKU: W-L10B1-92PS

Chain 10B1-92Ps application Bizon 5040995810 Waryński

Roller chain, Galla single row, drive, inch.

British Standard made according to the following standards: PN77/M-84168, DIN 8187, ISO 606, BS228.

Increased abrasion resistance.

Hardening makes the chains stronger and lasts longer. This process takes place under special supervision, which ensures perfect parameters of the furnace and cooling liquid.

Tensile strength.

This is due to the fit of the pins with the plates, with an accuracy of up to a micron. Thanks to this, the chain works efficiently - the links do not break out and there is no slack. Precise grinding of the chain's cylindrical elements protects it against kneading and abrasion of the cylindrical elements.

Increased tearing resistance.

All pins are forged with appropriate, repeatable force. If the chain is too tight, it may damage other components of the chain, while if it is too weak, it may break the chain. Reproducible crimping force thanks to the automated process guarantees that each link of the chain is identical and perfect

Perfect cooperation with the wheels.

Accurate and repeatable distances between the pins ensure that the chain fits perfectly on the wheel, thus not damaging the wheel teeth.

Remember to use wheels from reliable and proven manufacturers Packaging: 1 pc.

Internal width: 9.65 mm

Max. roll filaments: 10.16 mm

Max. pin diameter: 5.08 mm

Internal plate thickness: 1.7 mm External plate thickness: 1.7 mm Max width: 19.5 mm

Max width connecting link: 20.9 mm

Plate width: 14.7 mm

Average breaking load of the chain: 27.5 kN

Min. chain breaking load: 22.4 kN

Number of cells: 92 cells (91 plus 1 lock)
