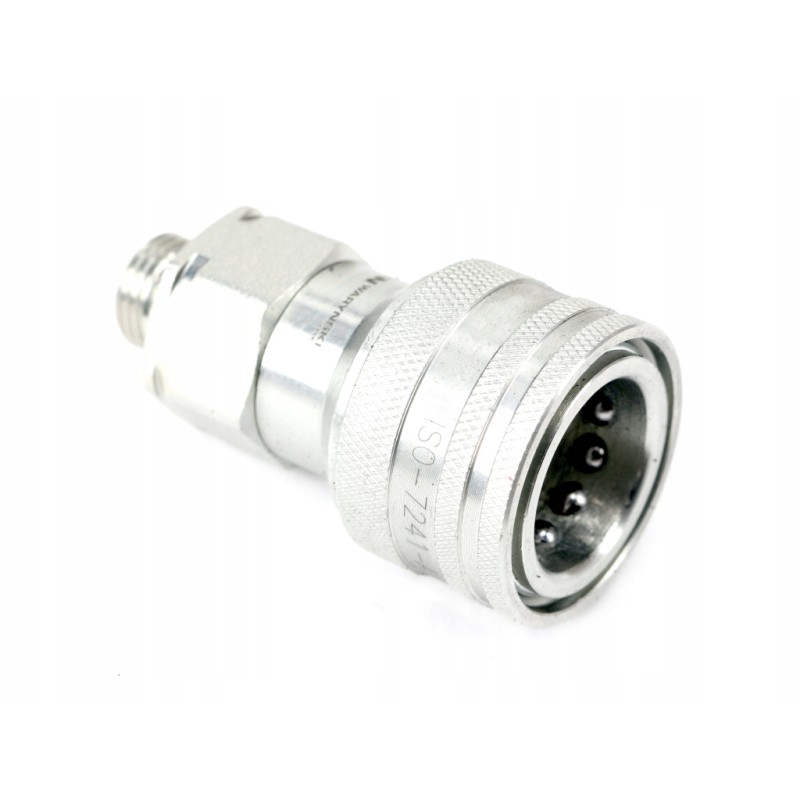

Hydraulic quick connector, M14x1 socket 5

Hydraulic quick connector, M14x1.5 socket, EURO external thread (ISO 7241-A) with Waryński pressure eliminator. The pressure eliminator allows the hydraulics to be connected without the need to apply excessive force, ensuring a quick and easy connection process in any situation (static pressure between the two hydraulic systems is released). It is an ideal solution for connecting hydraulics with a very wide range of applications. The quick couplings are designed in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable compatibility of quick couplings produced by different manufacturers in accordance with this standard. Interchangeable with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

Thread: External M14x1.5

Collective packaging: 1 pc

Standard: (EURO), ISO-7241-A (ISO- A)

Type: EURO socket with pressure eliminator

Cone - thread: 08L (8 mm)

Max. operating pressure: 25.0 Mpa / 250 bar

Operating temperature: from -25°C to +120°C

Fits plugs : WIAM14SZ, WIAM16SZ, WIAM16SZL, WIAM18SZ, WIAM18SZL, WIAM22SZ, WIAM22SZL, WIAM20SZ, WIAR12SW, 9100820W, 9100816W, 9100818W, 9100822W, 9100814W, 9100820W, WIAM18 SWE, WIAM18SZE, WIAM18SZLE, WIAM20SZE, WIAM22SWE, WIAM22SZE, WIAM22SZLE, WIAR12WE, WIAM14SZE, WIAM16SZE , WIAM16SZLE, WIAR12SZZE, WIAR12SZ

Fits the cover: RM-GNIA12Z, 5049004EURO

Quick connectors used in agricultural

forestry

industrial

construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The static pressure between the two hydraulic systems is relieved using a pressure eliminator. This means trouble-free connection of quick connectors in lines connected to the supply line in which the pressure eliminator is connected. The pressure eliminator enables hydraulic connection without the need to apply excessive force, ensuring a quick and easy connection process in any situation.
