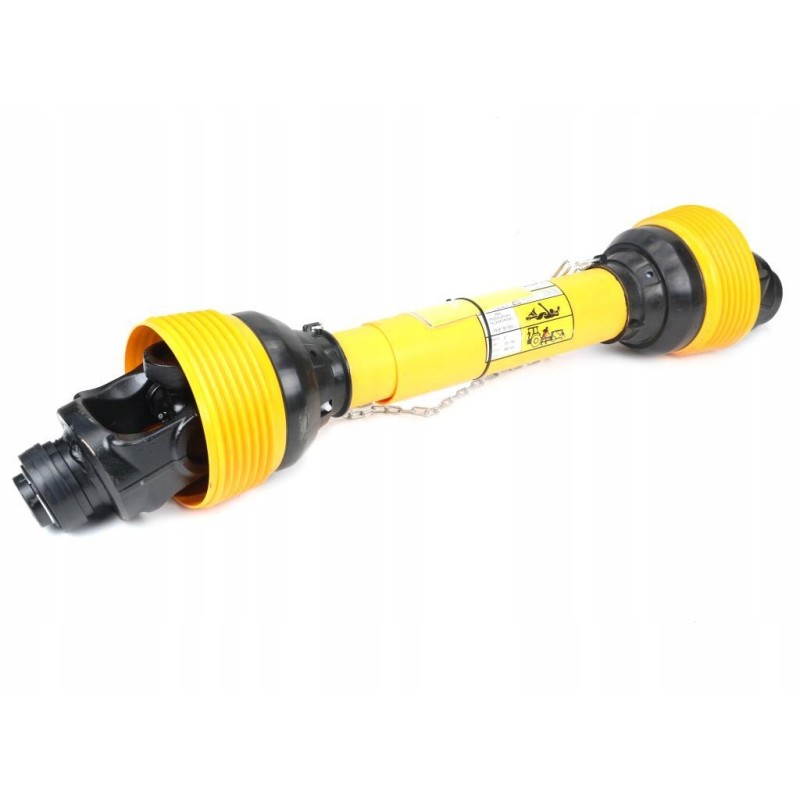

Articulated and telescopic shaft 460 630mm 1240nm CE

PTO shaft 460-630mm 1240Nm CE 2020 series 8R Waryński EAN: 5902287225365

SKU: W8B1B1460

All products at our auctions are new and from proven manufacturers Coupling:None Maximum length:680mm Minimum length:460mm Inner tube thickness:54mm Outer tube thickness:63mm Nominal power:70 ( 95 )KW (HP) Mounting to the machine:1 3/8' Z6'inch Mounting to the tractor:1 3 /8' Z6'inch Torque:1240Nm Working angle:Max 17° Bearing diameter:35mm Cross height:106mm Telescopic connector type:Triangular tube Works with:External fork - WR227801, Cross fork - WR219801, External tube fork - WR219806, Fork internal pipes - WR219807, Inner tube - WR2383315, Outer tube - WR2382355, Housing - Inner tube wall thickness:4mm Outer tube wall thickness:4mm Clutch disengagement torque:None Packing per::1

Tractor mounting: 1 3/8' Z6'inch

Mounting to the machine: 1 3/8' Z6'inch

Type of telescopic connector: Triangular tube

Minimum length: 460mm

Maximum length: 680mm

Nominal power: 70 (95)KW (HP)

Coupling: None

Inner tube thickness : 54mm

Outer pipe thickness: 63 mm

Bearing diameter: 35 mm

Cross height: 106 mm

Works with: External pipe fork - WR227801, Cross fork - WR219801, External pipe fork - WR219806, Internal pipe fork. - WR219807, Inner pipe - WR2383315, Outer pipe - WR2382355, Housing -

Torque: 1240Nm

Working angle: Max 17°

Inner pipe wall thickness: 4mm

Outer pipe wall thickness: 4mm

Clutch disengaging torque: None

Packing after :: 1

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. If you receive goods that do not match the description, please inform us immediately in a message via Allegro.
