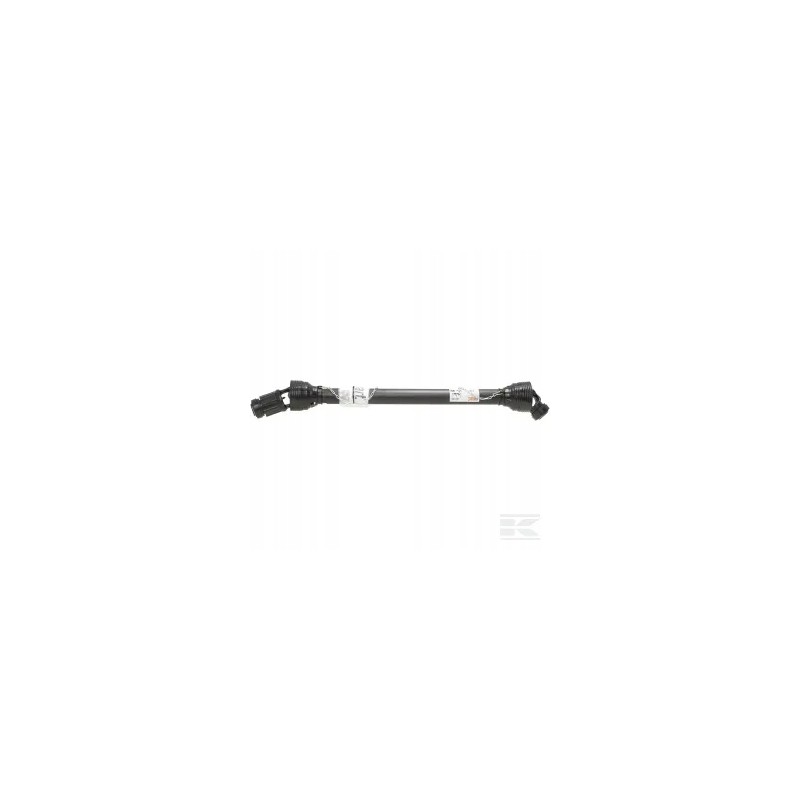

PTO shaft 60 L=1010 mm gopart
Part number: K. PTO60Y21T1010RTGP
EAN: 8719493070194
Unit: Piece
Description product: Articulated shafts with attached ratchet clutch are suitable for various agricultural machines
Advantages:
Cost-effective alternative in the low power range
Meets all international requirements in safety
Product details:
PTO20
Max. dynamic power 540 rpm: 15kW
Max. dynamic power 1000 rpm: 23kW
PTO40
Max. dynamic power 540 rpm: 26kW
Max. dynamic power 1000 rpm: 40kW
PTO50
Max. dynamic power 540 rpm: 35kW
Max. dynamic power 1000 rpm: 54kW
PTO60
Max. dynamic power 540 rpm: 47kW
Max. dynamic power 1000 rpm: 74kW
Properties: Meets all international safety requirements
Technical information:
PTO20
Max. dynamic power 540 rpm: 15kW
Max. dynamic power 1000 rpm: 23kW
PTO40
Max. dynamic power 540 rpm: 26kW
Max. dynamic power 1000 rpm: 40kW
PTO50
Max. dynamic power 540 rpm: 35kW
Max. dynamic power 1000 rpm: 54kW
PTO60
Max. dynamic power 540 rpm: 47kW
Max. dynamic power 1000 rpm: 74kW
Benefits: Cheap alternative in the low power range
Outer diameter of the connection on the tractor side: 1-3/8 inch
Number of connection keys on the tractor side: 6
Type of connection on the tractor side: Flange gate valve
Accessories on the tractor side: Quick-connect fork
Outer diameter of the connection from machine side: 1-3/8inch
Number of machine side connection keys: 6
Machine side connection type: Flanged gate valve
Machine side accessories: Ratchet clutch
Shaft size: PTO 60
Power at 540 rpm: 47kW
Power at 1000 rpm: 74kW
Diameter of the cross sleeve on the tractor side: 30.2mm
Length of the cross on the tractor side: 91.4mm
Diameter of the cross sleeve on the machine side: 30.2mm
Length of the cross on the machine side: 91.4mm
Coupling type: n/a
Maximum clutch torque: 1200N m
Outer pipe wall thickness : 4mm
Larger diameter of the outer pipe: 54mm
Wall thickness of the inner pipe: 5.5
