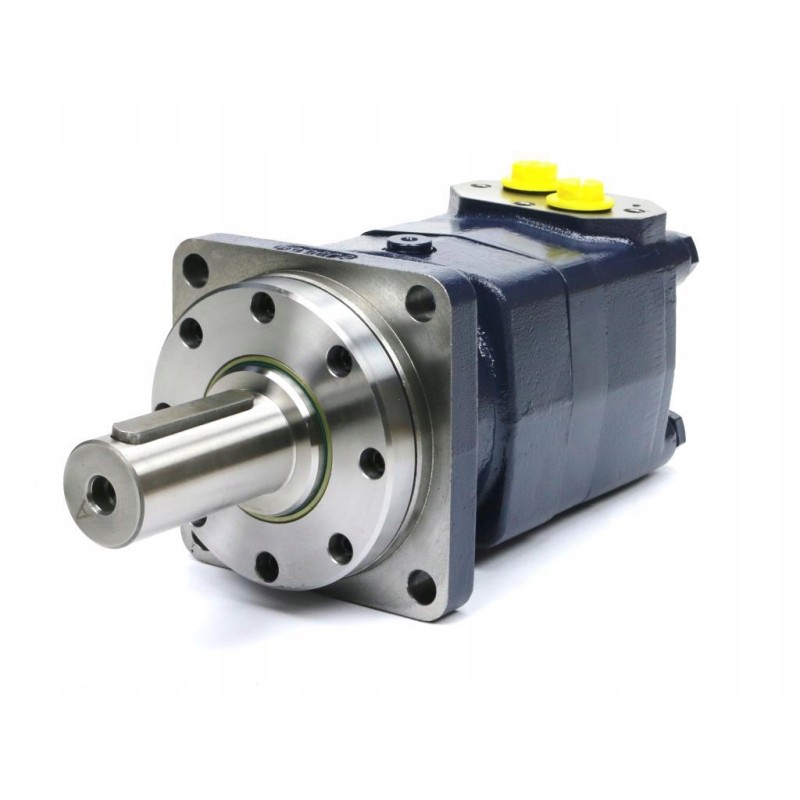

WMT 250 cm3 orbital hydraulic motor, 200 rpm

WMT orbital hydraulic motor 250 cm3/rev (200 Index WMT-250 Absorbency: 252.2

Shaft diameter: O40

Drain connection thread: 1/4' BSP'

< p/>Connection threads: 3/4' BSP'

Max. working pressure: 24 MPa (240 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine)< p>

Max. Instantaneous pressure: 28 MPa (280 bar) - Note: maximum 1 second / 1 minute of engine operation (exceeding these parameters may result in immediate engine damage)

Max. Nominal pressure: 20 MPa (200 bar) - Note: maximum continuous engine operating pressure

Max. output power: 25.2

Max. Torque: 883

Max Nominal torque: 710

Max. Nominal speed: 395

Max. Working fluid flow: 100

WMT orbital hydraulic motor 250 cm3/rev ( 200 bar / max. 240 bar / max. instantaneous 280 bar) Waryński. WMT series engines are characterized by compact design, high torque, high absorbency. They operate within a range of significant torques at rather low rotational speeds. Can be connected in parallel or in series. Disk distribution ensures high efficiency, efficiency, smooth operation and long service life. In order to achieve a longer service life, it is recommended that optimal operating conditions be at the level of 1/3 to 2/3 of the maximum parameters.

EAN 5902287199369

The Waryński company uses its many years of production experience in the industry industrial expanded its offer to include parts for agricultural machinery. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance when working in difficult conditions.

All products available in our store are new and unused.

Despite every effort, we cannot guarantee that the published photos, technical data and descriptions do not contain any omissions or errors.
