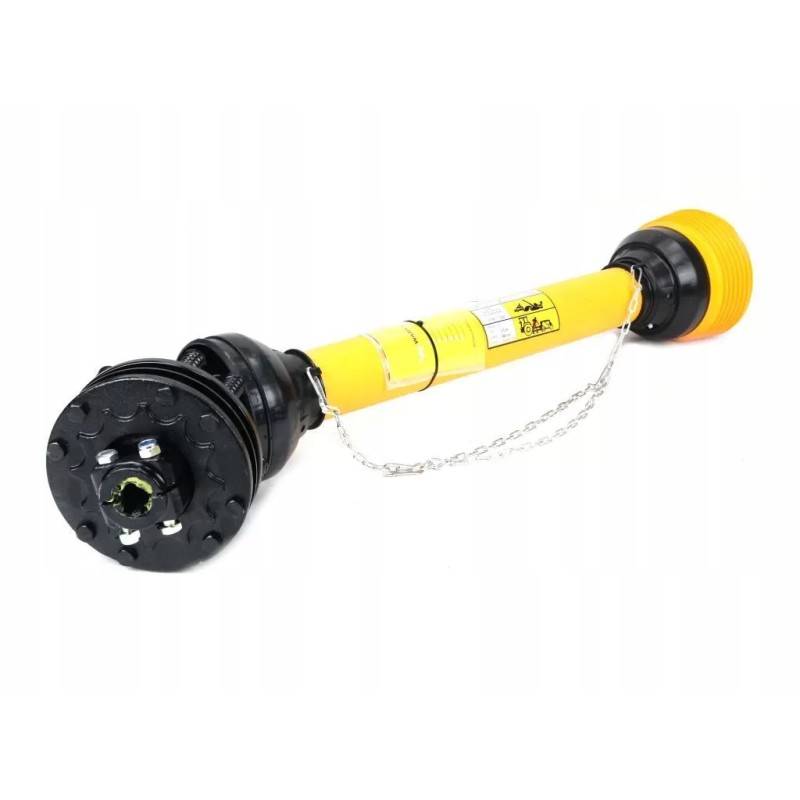

Articulated and telescopic shaft 660 800mm 970nm clutch

PTO shaft 660-800mm 970Nm clutches Index W7B163660Clutch: Friction clutch

Maximum length: 880

Minimum length: 660

Inner tube thickness: 45

Outer tube thickness: 54

Nominal power: 55 ( 75 )

Mounting to the machine: 1 3/8' Z6'

Mounting for tractor: 1 3/8' Z6'

Torque: 970

Operating angle: Max 17°

Bearing diameter: 30.2

Height of the cross: 106

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227701, Cross fork - WR219701, External pipe fork - WR219706, Internal pipe fork . - WR219707, Inner pipe - WR2363505, Outer pipe - WR2362535, Housing - WR22971129

Inner pipe wall thickness: 5.5

Outer pipe wall thickness: 4

Clutch: Friction clutch

Maximum length: 880mm

Minimum length: 660mm

Inner tube thickness: 45mm

Outer tube thickness: 54mm

Nominal power: 55 ( 75 )KW (HP)

Mounting to the machine: 1 3/8' Z6'cal

Mounting to the tractor: 1 3/8' Z6'inch

Torque: 970Nm

Operating angle: Max 17°

Bearing diameter: 30.2mm

Height of the cross: 106mm

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227701, Cross fork - WR219701, External pipe fork - WR219706, Internal pipe fork. - WR219707, Inner pipe - WR2363505, Outer pipe - WR2362535, Housing - WR22971129

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness: 4mm

EAN 5902287225341

The Waryński company, using its many years of production experience in the industrial industry, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance when working in difficult conditions.

All products available in our store are new and unused.

Despite every effort, we cannot guarantee that the published photos, technical data and descriptions do not contain any omissions or errors.

If you have any doubts about the quality of the products received or possible discrepancies in appearance, please report it to us in an Allegro message. We will definitely do our best
