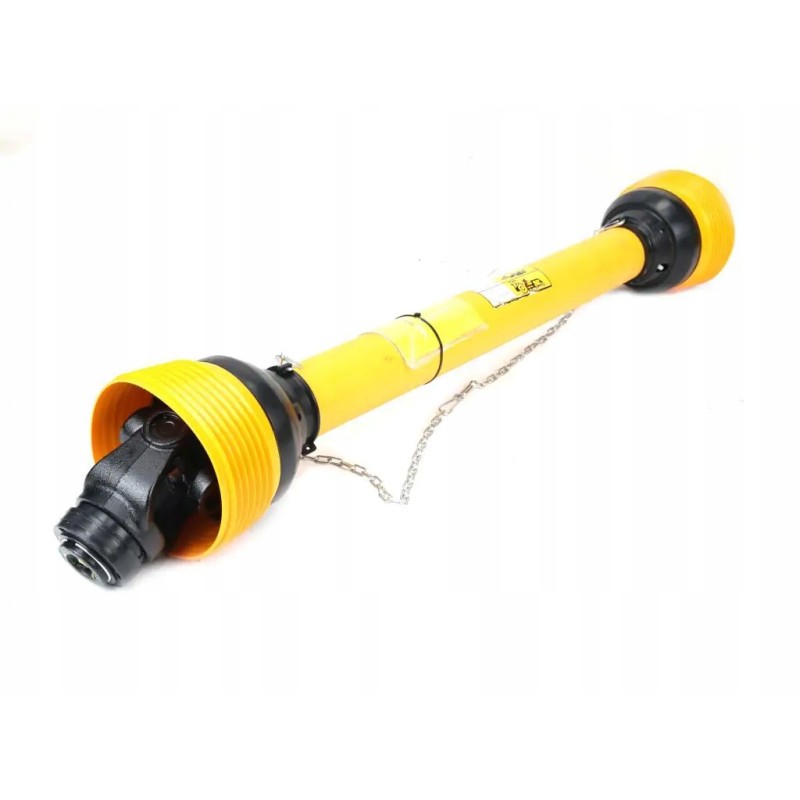

Articulated and telescopic shaft 1210 1900mm 970nm ce 2

PTO shaft 1210-1900mm 970Nm CE 2 Index W7B1B11210 Maximum length: 1900

Minimum length: 1210

Inner tube thickness: 45

Outer tube thickness: 54

Nominal power: 55 ( 75 )

Mounting to the machine: 1 3/8' Z6'

Mounting to the tractor: 1 3/8' Z6'

Torque: 970

Working angle: Max 17°

Bearing diameter: 30.2

Height of cross: 106

Type of telescopic connector: Triangular pipe

Works with: External pipe fork - WR227701, Cross fork - WR219701, External pipe fork - WR219706, Internal pipe fork. - WR219707, Inner pipe - WR23631055, Outer pipe - WR23621090, Housing - WR22971129

Inner pipe wall thickness: 5.5

Outer pipe wall thickness: 4

Clutch disconnecting moment: None

Maximum length: 1900mm

Minimum length: 1210mm

Inner tube thickness: 45mm

Outer tube thickness : 54mm

Nominal power: 55 ( 75 )KW (HP)

Mounting to the machine: 1 3/8' Z6'cal

Mounting to the tractor: 1 3/8' Z6'inch

Torque: 970Nm

Operating angle: Max 17°

Bearing diameter: 30.2mm

Height of the cross: 106mm

Type of telescopic connector: Triangular pipe

Works with: External fork - WR227701, Cross fork - WR219701, External pipe fork - WR219706, Internal pipe fork. - WR219707, Inner pipe - WR23631055, Outer pipe - WR23621090, Housing - WR22971129

Inner pipe wall thickness: 5.5mm

Outer pipe wall thickness: 4mm

Clutch disconnecting torque: None

EAN 5902287225327

The Waryński company, using its many years of production experience in the industrial industry, has expanded its offer to include parts for agricultural machines. To meet the expectations of agricultural customers, all Waryński products are made of carefully selected materials and tested at every stage of the production process by qualified specialists. All our products are characterized by long service life and resistance when working in difficult conditions.

All products available in our store are new and unused.

Despite every effort, we cannot guarantee that the published photos, technical data and descriptions do not contain any omissions or errors.

If you have any doubts about the quality of the products received or possible discrepancies in appearance, please report it to us in an Allegro message. We will definitely do our best
