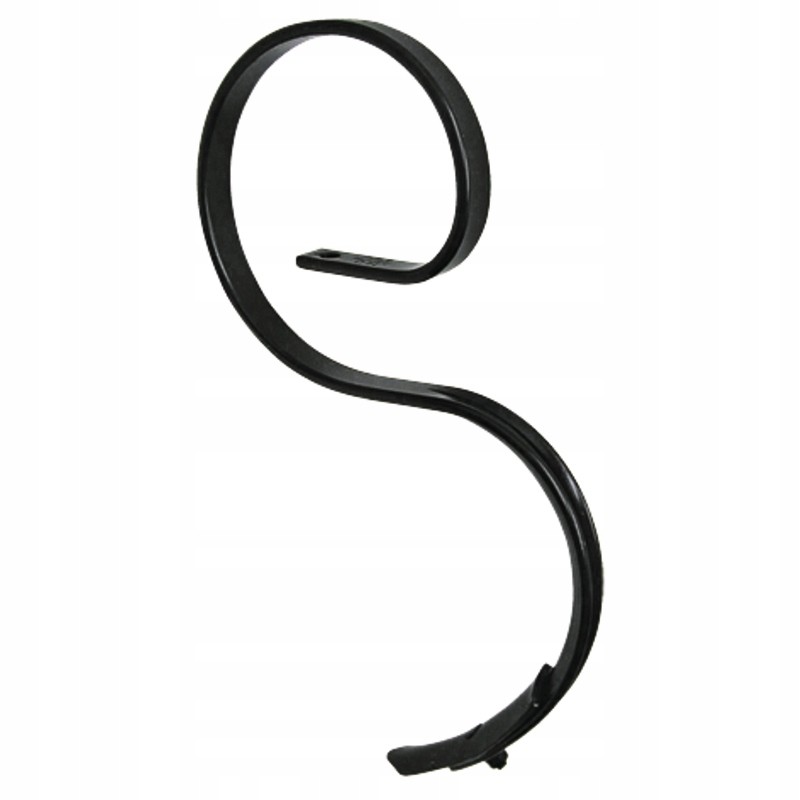

550mm spring tine complete with BBG RS2977S share

Spring tine 550mm set with BBG RS2977S share QUALITY PROVIDED BY GRANIT PARTS GERMANY

Brand: GRANIT PARTS GERMANY

Article number: 23532 RS2977S

Reference number:

RS2977S

CP50

Technical parameters:

Spring tooth set with coulter

Dimensions (mm): 32 x 10

Square (mm): 32 x 10

Length (mm): 550

The GRANIT spring tooth material was checked by spark spectrometry and hardness analysis, and the bending was checked in accordance with the DIN 11095 standard of August 1991. As a result of the test, it was determined that spring steel 46 Si 7 was used, and in the hardness analysis, HB 1 / 410 was determined as the average value.

In the latter case, the bend in the direction of travel was determined depending on the test load and the change in working depth.

The bending check showed completely flexible properties with no plastic deformation of the tooth.

In summary, excellent elastic behavior was confirmed. The high-quality spring steel used to produce the tooth is ideal for its application.

Application:

BBG

Assembly instructions

Do not tighten screws and nuts using pneumatic tools, as this may damage the working parts (stress cracks).

About the product:

Granit spring teeth are made of high-quality spring steel 46 Si 7 with a hardness of HV1 / 410. Such parameters make the teeth very flexible and resilient and do not deform. This is confirmed by testing of tooth material using spark spectrometry in accordance with DIN 11095.
