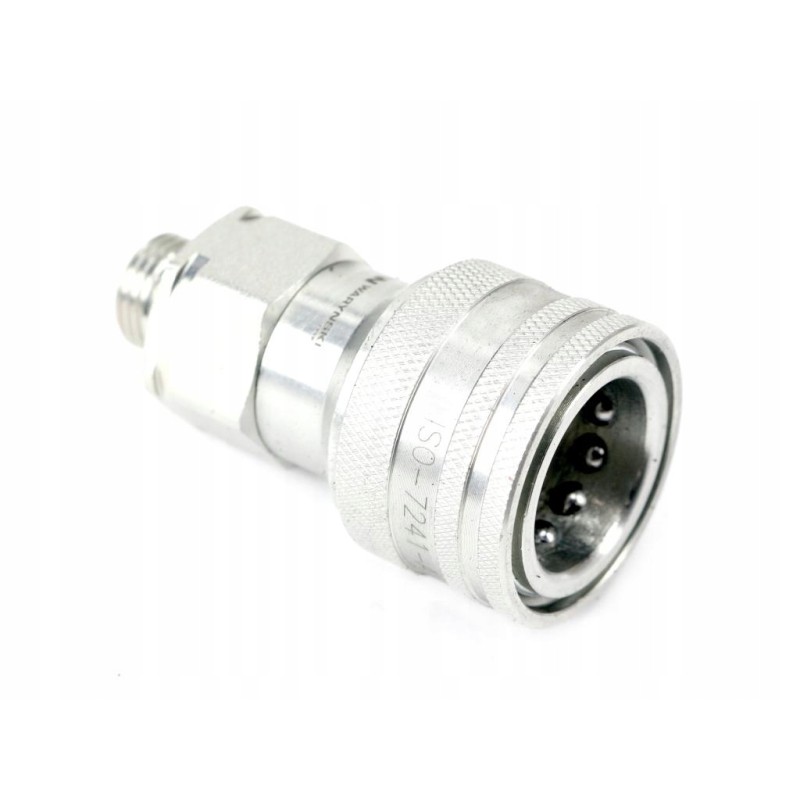

Hydraulic quick connector, M14x1 socket 5

Hydraulic quick connector, socket M14x1.5 external thread EURO ISO 7241-A with pressure eliminator WaryńskiHydraulic quick connector socket M14x1.5 external thread EURO ISO 7241-A with pressure eliminator Waryński Hydraulic quick connector socket M14x1.5 external thread EURO (ISO 7241-A) with eliminator Waryński pressure. The pressure eliminator allows the hydraulics to be connected without the need to apply excessive force, ensuring a quick and easy connection process in any situation (static pressure between the two hydraulic systems is released). It is an ideal solution for connecting hydraulics with a very wide range of applications. The quick couplings are designed in accordance with the dimensional and quality requirements of the ISO 7241 Series A standard, which specifies in detail the characteristics and dimensions to enable compatibility of quick couplings produced by different manufacturers in accordance with this standard. Interchangeable with ISO-A quick connectors from other manufacturers such as: Parker, Faster, Stucchi, DNP, Tema and others.

*Parameters:

*Thread: External M14x1.5​​​​​​

*Standard: (EURO), ISO-7241-A (ISO-A)​​​​​​​

*Type: EURO socket with pressure eliminator​​​​​​​

*Cone - thread: 08L (8mm)

*Max. working pressure: 25.0 Mpa / 250 bar

*Operating temperature: from -25°C to +120°C

*Fits plugs: WIAM14SZ, WIAM16SZ, WIAM16SZL, WIAM18SZ, WIAM18SZL, WIAM22SZ, WIAM22SZL, WIAM20SZ, WIAR12SW, 9100820W, 9100816W, 9100818W, 9100822W, 9100814W, 910 0820W, WIAM18SWE, WIAM18SZE, WIAM18SZLE, WIAM20SZE, WIAM22SWE, WIAM22SZE, WIAM22SZLE, WIAR12WE , WIAM14SZE, WIAM16SZE, WIAM16SZLE, WIAR12SZZE, WIAR12SZ

*Fits cover: RM-GNIA12Z, 5049004EURO

-️ Application:

Quick connectors used in agricultural, forestry, industrial and construction machines. Waryński quick connectors solve the problem of quickly connecting and disconnecting flexible cables. The static pressure between the two hydraulic systems is relieved using a pressure eliminator. This means trouble-free connection of quick connectors in lines connected to the supply line in which the pressure eliminator is connected. The pressure eliminator allows you to connect the hydraulics without the need to use excessive force, ensuring a quick and easy connection process in any situation.

* Producer: Waryński
