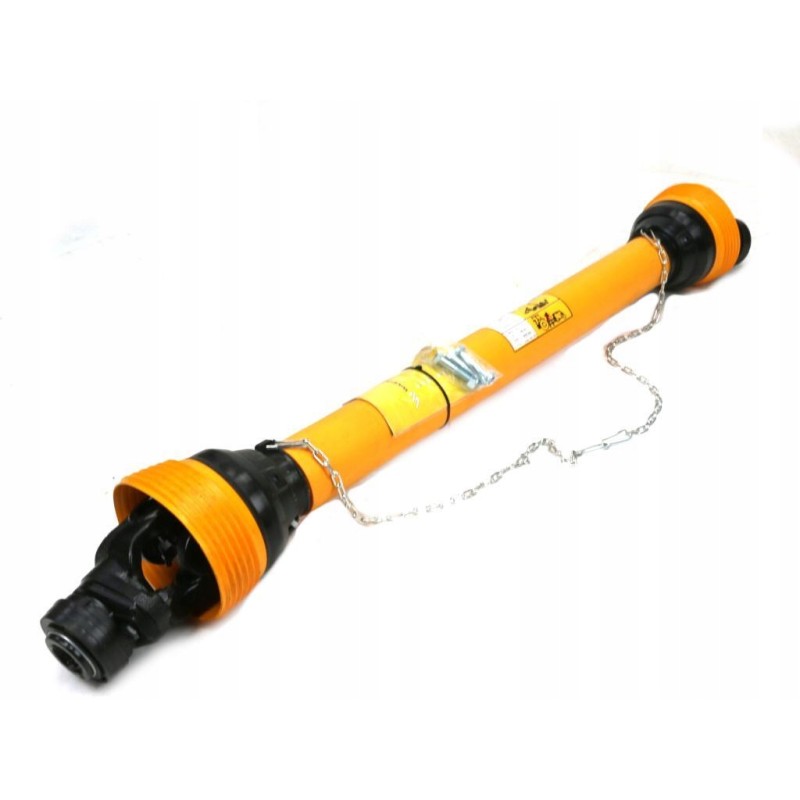

Articulated and telescopic shaft 860 1175mm 1240nm 8r

PTO shaft 860-1175mm 1240Nm clutch with pin 3000Nm CE 2020 series 8R Waryński EAN: 5902287227314

SKU: W8B171860

All products on our auctions are new and from proven manufacturers< p>

Shaft made according to the new PN-EN-12965_2020 standard. Waryński R Series rollers were created to even better meet the needs of our customers. The changed design allowed us to increase the durability and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the newly applicable Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosses equipped with special bearings of increased durability and Waryński PTO shaft housings resistant to mechanical impacts, UV exposure and low temperatures.

Clutch: clutch with a pin Maximum length:1175mm Minimum length:860mm Inner tube thickness:54mm Outer tube thickness:63mm Nominal power:70 ( 95 )KW (HP) Machine attachment:1 3/8' Z6'inch Tractor attachment:1 3/8' Z6'inch Torque: 1240Nm Working angle: Max 17° Bearing diameter: 35mm Cross height: 106mm Telescopic connector type: Triangular pipe Works with: External fork - WR227801, Cross fork - WR219801, External pipe fork - WR219806, Internal pipe fork. - WR219807, Inner pipe - WR2383705, Outer pipe - WR2382735, Housing - Inner pipe wall thickness:4mm Outer pipe wall thickness:4mm Packing by::1

Mounting to tractor: 1 3/8' Z6' inch

Mounting to the machine: 1 3/8' Z6' inch

Telescopic connector type: Triangular tube

Minimum length: 860mm

Maximum length: 1175mm

Nominal power: 70 ( 95 )KW (HP)

Clutch: Coupling with pin

Inner tube thickness: 54mm

Outer tube thickness: 63mm

Bearing diameter: 35mm

Cross head height: 106mm

Works with: External fork - WR227801, Cross head - WR219801, External pipe fork - WR219806, Internal pipe fork. - WR219807, Inner pipe - WR2383705, Outer pipe - WR2382735, Housing -

Torque: 1240Nm

Working angle: Max 17°

Inner pipe wall thickness : 4mm

Outer pipe wall thickness: 4mm

Packing by:: 1

The photos included in the auction are for illustration purposes only, the actual appearance of the goods may differ. Which does not affect the functionality of the part/item. Please read the description and title of the auction. In case of receiving
